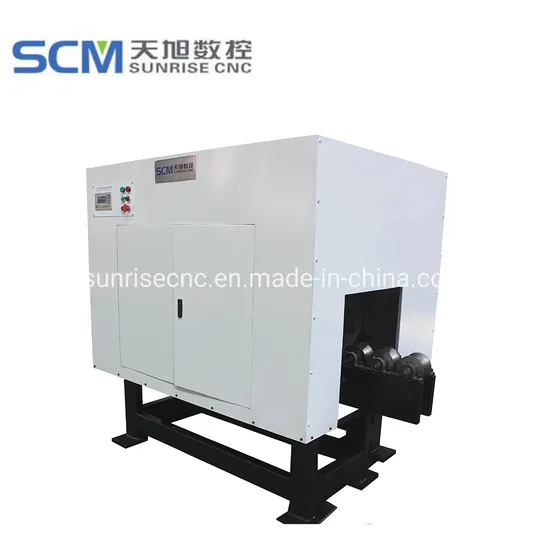

Angle Back Milling Machines

Product Description

Applicable Industry:
The machine used for angle bank milling, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature: By installing special cutter of a few cutting blade , high speed milling and high efficiency, surface roughness is good, one time molding process. According to request it can do a single-stage and continuous cutting. Operation of this machine is simple, reduced operational requirements of workers. Machine with high degree automation, can achieve a continuous, intermittent feeding, effectively improve work efficiency; process one size L180 × 180 × 18 length 800mm angle, for about 2-3 minutes, one worker can operate two machine together. Compared with the traditional planer, this machine overcome the problems that limited length, interposed complicated , the processing length unlimited, without the workpiece clamping device so that the processing is more convenient, reducing the labor intensity, greatly improving production efficiency. Simple operation, flexible adjustment and stable operation. Multi -purpose machine, can complete continuous feed and cutting length. With the air pressure protection device to prevent the safety accidents caused by low pressure. With touch-screen operator interface. Adjustment mechanism adopt the servo or stepper motor, high precision, low failure rate, easy maintenance. Spindle box adopt oil-immersed structure, longer service life, more stable performance.
SPECIFICATIONS:

Model	TQC200	TQC250
Total power	10KW	12KW
Single-spindle power	4KW	5.5KW
Power supply	380V,50Hz	380V,50Hz
Air supply	0.6MPa~0.7MPa	0.6MPa~0.8MPa
Cutting Speed	150~400rpm	0~400rpm
Diameter of cutting plate	100mm	200mm
Feeding speed	100~450mm	0~450mm/min
Rotation of spindle	450rpm	360rpm
Quantity axis	2	2
Quantity feeding motor	2	2
Adjustment motor of cutting amount	1(Servo or stepper motor)	1(Servo or stepper motor)
Quantity pressure cylinder	4	4
Angle processing size	L50~L200	L63~L250
Length of angle	280mm~+∞ (Processing length unlimited)	330mm~+∞ (Processing length unlimited)
Operation mode(Data input)	Touch screen (with compensation function)

Main component list:

No	Name	Type	Quantity	Remark
1	Flat cutter	100	1
2	ARC cutter	100	1
3	spindle motor	Y112M-4	2
4	reducing motor	NMRV050-NMRV110	2
5	reducing motor	Y110-200	1
6	slide rod	HGW35CA	6
7	PLC	DVP-64EHOOR2	1
8	Text display	TP04G-BL-C	1
9	Inverter	VFD-015M	1
10	Micro- off	C65N 3P C32A	2
11		C65N 3P C2A	2
12	Micro- off	C65N 3P C10A	1
13	Micro- off	C65N 3P C6A	3
14	Micro- off	C65N 2P C6A	1

Packing list:

NO.	Name	Unit	Qty.	Remark
1	Host machine	set	1
2	Flat cutter	set	1	2 sets of knives
3	R20 ARC cutter	set	1
4	Control cabinet	set	1
5	Operation platform	set	1
6	Hydraulic station	set	1
7	Knife change tool	set	1
8	Manual operation guide	piece	1

No.	Name	Unit	Quantity	Remark
1	Host machine	Set	1
2	Control cabinet	Set	1
3	circuit	Set	1
4	Feed	Set	2
5	Operating floor	Set	1

---
