Basic Info.
Portable Harvester Type
Full Feeding
Certification
ISO9001:2008
Application Field
Agriculture
Unloading Type
Bad/ Automatically
Transmission Mode
Hytrostatic Stepless Change[Hst]
Transport Package
Container, 3 Units in One Container
Production Capacity
20 Units Per Month
Product Description

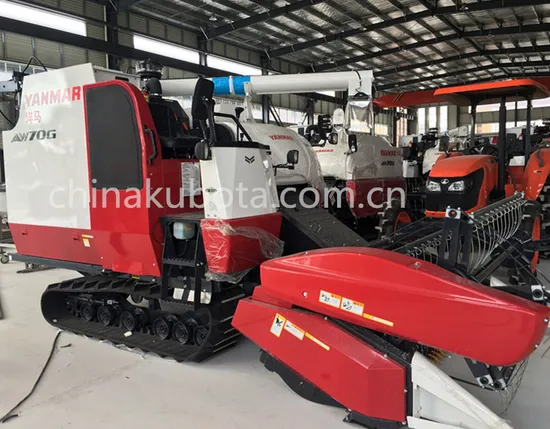

YANMAR AW70G COMBINE HARVESTER
| SPECIFICATION OF YANMAR AW70G HARVESTER |
| MODEL | AW70G(4LZ-2.5A) |
| Dimension | Overall length(mm) | 5040 |
| Overall width(mm) | 2285 |
| Overall height(mm) | 2535 |
| Weight (kg) | 3020 |
| Engine | Model | 4TNV98 |
| Pattern | Vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesle |
| rated output/speed (ps[kw]/rpm) | 70[51.5]/2500 |
| Travel unit | track width×length(mm) | 425×1660 |
| transmission mode | Hytrostatic stepless change[HST] |
| Speed grade | Stepless vice-speed 3files |
| Running speed | Advance (m/s) | Low speed:0~0.93 cruising speed:0~1.5 high speed:0~1.85 |
| turning way | Brake change |
| Harvest unit | Fu wo method | Fu wo machine |
| Fu wo machine | rotation diameter*width(mm) | 900*1920 |
| transmission mode | Constant speed |
| up and down adjustment | hytraulic |
| Harvesting width(mm) | 2060 |
| cutter width(mm) | 1905 |
| Harvest height(mm) | More than 40 [tip cutter] |
| Threshing unit | Threshing system | Axial flow type threshing gear |
| Threshing cylinder | Diameter*width(mm) | 640×1850 |
| Concavity net area(4)(m2) | 1.621 |
| cereal discharge unit | capacity(L) | 1030 |
| Discharge height mm | 640~2130 |
| Discharge length mm | 630~1310 |
| discharge time | anout 85s |
| Discharge type | automatically at side |
| Suitable crops | Rice wheat |
| Operational efficiency (ha/ hour) | ~0.5 |
Other Yanmar Products We specialized in yanmar and kubota spare parts, machine ( harvester, transplanter,tractor).
MACHINE MODEL:kubota 488, 588I, 688Q, 788, 888, DC60, DC68G, DC70, DC95, 704K, 854 ,954,1004, NSPU68C, NSPU88C, SPW48/68C
Yanmar :AW70G,AW70GR,AW85G,AW85GR,YH880,AP4,AP6,SPV6C,SPV8C,YT704
YANMAR machine and Spare Parts are popular in Philippines, Tailand, Vietnam and Sri Lanka and other countries. So glad to talk with you about Different YANMAR machines and Spare Parts.
Company Introduction:
Our company leading with agricultural machines and parts.The rich brands and types with the high quality you can find all here.Domestic and overseas can let you choose freely.
Combine harvester,Transplanter,Tractor,Seeding planter, Walking tractor,Mini machine with Kubota ,Yanmar,SHN,JohnDeere,Lucky Star,Changfa,Dongfeng,different choice according to your personal request. The matched implements such as front loader,backhoe,rotary tiller, tubers excavators etc and spare parts,engine parts form a complete product line.
The rich experience, deserved reputation and enough strength can make us always have enough promote goods to supply our wide customers in Philippines,Vietnam,Thainland,Indonesia,Tanzania,India,Iron,SriLanka,Bolivia,Hungary,etc.
