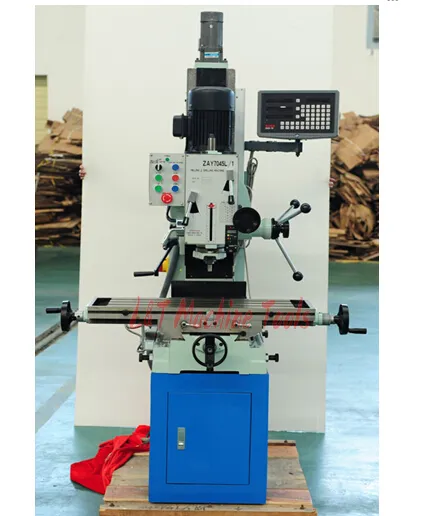

Hobby Drilling Milling Machine Price Zay7045L/1 Zay7045afg Zay7045afg/1 Small Drill Mill Machine

US$700.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZAY7045L/1 ZAY7045AFG ZAY7045AFG/1
Object
Hardware
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle Travel
130mm
Max Face Mill Capacity
80mm
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L& T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
100 PC/Month

Product Description

Hobby Drilling Milling Machine Price ZAY7045L/1 ZAY7045AFG ZAY7045AFG/1 Small Drill Mill Machine
Feature:
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Auto-lifting headstock electrically
Numeral depth gauge for spindle feeding
Heighten and steadier column
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Technical parameter:
Model ZAY7045L/1 ZAY7045AFG ZAY7045AFG/1
Max Drilling capacity 45mm 45mm 45mm
Max Face mill capacity 80mm 80mm 80mm
Max End mill capacity 32mm 32mm 32mm
Max distance from spindle
nose to table		 530mm 425mm 425mm
Min distance from spindle
axis to column		 280mm 279mm 279mm
Spindle travel 130mm 130mm 130mm
Spindle taper M.T.4 M.T.4 M.T.4
Step of speed 12 6 6
Range of spindle speed
50HZ		 80-1575 r.p.m 80-1250 r.p.m 90-1600 r.p.m
2 poles motor 60HZ 160-3150 r.p.m 100-1500 r.p.m 110-1920 r.p.m
Auto-feeding step
of spindle		 / 6 3
Auto-feeding range
of spindle		 / 0.05-0.35mm/r 0.12 0.18 0.025
Swivel angle of headstock
(perpendicular)		 ±90° ±90° ±90°
Auto-lifting for spindle
(As customer's requirement)		 Auto-lifting for spindle / /
Table size 800×240mm 800×240mm 800×240mm
Forward and backward
travel of table		 300mm 205mm 205mm
Left and right travel of table 585mm 585mm 585mm
Motor power 0.85/1.1KW 1.5KW 1.5KW
Net weight/Gross weight 380kg/450kg 380kg/420kg 330kg/380kg
Packing size 1030×920×1560mm 770×880×1160mm 770×880×1160mm
