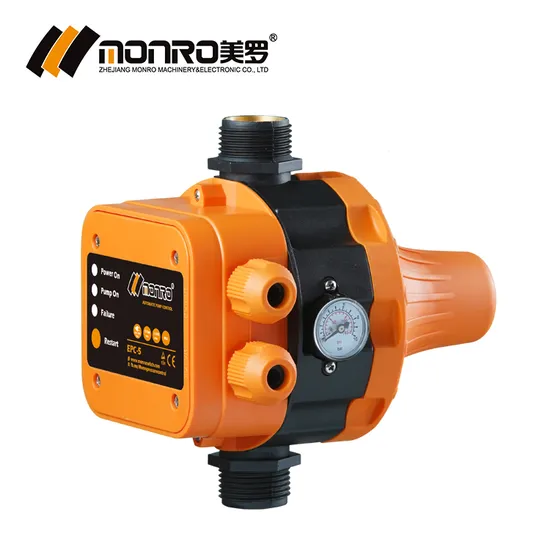

2022 Customized Pump Protector Automatic Pressure Controller EPC-5 Monro Hot Sale

Product Description

Product Description Product application:
Widely used in a variety of self-priming pumps, jet pumps, centrifugual pumps, garden pumps and other water supply systems: Ordinary wells and tube wells, Household water booster, High buildings water booster, Irrigation system. Function:
1.Electric swith used in water systems,start and stop the pump automatically
2.Examine the water automatically,stop the pump in the case of water shortaget,protect the pump from damage caused by dry-running
3.Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.
·Auto Start/Stop
·Stop with Pressure keeping
·Water Shortage Protection
·Automatic restart in case of water failure
·Water pump impeller jammed protection
·Pipeline leakage protection
·Flow switch jammed protection We strictly control the quality of products ensure the quality of each product,
ensure that customers can receive the best products.
Specification

Item	Value
Certification	CE TUV ISO9001
Whether the smart	Yes
Place of Origin	China
Brand Name	MONRO
Model Number	EPC-5
Max. Current	10A
Max. Voltage	250V
Max. Working Pressure	10BAR
Starting pressure	1.2bar/1.5bar/2.2bar
Rated voltage	110-120V/ 220-240V/ 110-240V
Frequency	50/60Hz
Connection	G1''
Working temperature	55ºC
Protection rating	IP65
Max power	0.55kW/1.1kW
Product size	147*185*175mm
WARRANTY	1 Year

Choice: The automatic control and the water pump The data in this table take into account the situation that pump head will decrease after a period of use.

S. NO.	Automatic Controller's Starting Pressure	Min Water Pump Lift	Using Height
	X (bar)	L=10*(X+0.8) (m)	H≤ 10*X-2 (m)
1	1.2	20	10
2	1.5	23	13
3	2.2	30	20

Packing & Delivery

Neutral Packing;per 12 pieces into one carton 1. nameplate sticker 2. inner box 3. manual book 4.outside carton MOQ>1200pcs, can do OEM. Detail pls contact us.

Company Profile ZHEJIANG MONRO MACHINERY&ELECTRONIC CO.,LTD is located in Wenling,Zhejiang province , which is a industrially development city with convenient transportation . With more than 20 years of production history for pressure controls and float switches. At present, our factory has more than 30 various types of pressure control which used for water pump system and air compressor.
We are committed to professional pressure control development,production and sales. Our company has establishes a scientific and efficient quality control system of ISO 9001;2008.Meanwhile,Our products successfully passed TUV(Germany),CE(Europe),CCC certificates,some of which have obtained CUL(UL) certificates.
We always follow the principle that quality is the point.In the past years,we have built advanced producing and consummate tesing equipment.With professional technicians and managers,our company has established a scientific and effcient quality control System .Our company is equipped with modern office facilities and outstanding management team. we are always devoting ourselves to the implementation of brand strategy, and the guarantee of products' quality.
Owing to High quality and favorable price, our products was highly-regarded in China and have been widely exported to Asia,Europe,North and South America,Middle East and Africa market. As a development,production and sales of family firms,we aim to provide you the best service and the highest quality.We have ready everything,looking forwarder to set up business relationships with customers all over the world.
FAQ 1. who are we?
We are based in Zhejiang, China, start from 2010,sell to Mid East(30.00%),Domestic Market(20.00%),Southeast Asia(15.00%),North America(5.00%),South America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Central America(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Pump Control Float Switch Air compressor Switch
4. why should you buy from us not from other suppliers?
With more than 20 years of production history for pressure controls and float switches. Our company has establishes a scientific and efficient quality control system of ISO 9001;2008.TUV(Germany),CE(Europe),some of which have obtained CUL(UL) certificates
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken:Chinese,Spanish

---
