Product Details
Product Description
Product Description
Product description：
Item No.
| CM3□-05
| CM3□-06
| CM3□-08
|
Fluid
| Air
|
Operation type
| External control
|
Pressure range
| 0-1.0 Mpa
|
Proof pressure
| 1.5Mpa
|
Ambient and fluid temperature
| -20 to 70℃
|
Valve type
| 3 port 2 position
|
Port size
| M5*0.8
| 1/8”
| 1/4”
|
Orifize size
| 2.0mm2
| 2.5mm2
| 15.0mm2
|
Cv value
| 0.11
| 0.14
| 0.84
|
Feature

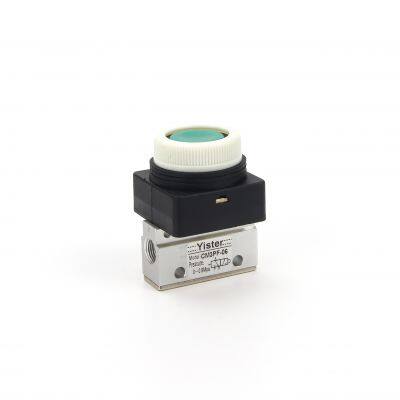

Airtac replacement CM3 manual mechanical valves are 3 way valves and are available with M5 ports 1/8 ports, or 1/4 ports.
A variety of manual and mechanical operators allow the CM3 series to be used as limit valves or to manually control circuit operation.
The non-threaded exhaust port allows the CM3 valves to be very compact in size. In addition to the wide range of manual actuators including large shrouded palm buttons.
FAQ
1. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
2.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
3 Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The company mainly produces and sells: PU air pipe, quick coupling, solenoid valve, foot valve, mechanical valve, buffer, sliding switch, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
>>
