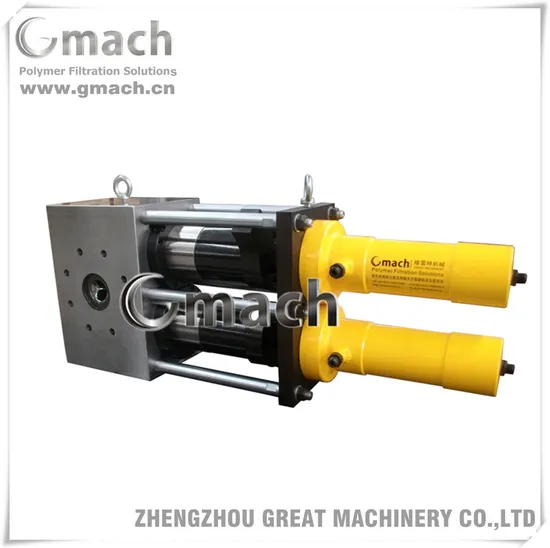

Dual Rods Contionuous Screen Pack Changer for Plastic Extruder

Product Description

Dual rods contionuous screen pack changer for plastic extruder
Features and benifits of this kind of screen changer
1, Guaranteed leak-free operation to 35 Mpa (350bar)(5075psi)
2, the breaker plate area ranges wide, meet the extruders with different capacity.
3, wear -resistant, corrosion resistant, long service life
4,continuous operation means no shut down the working machine or interrupt the production when changing the screen.
5, Equiped with exhaust system, greatly improve the quality of the product.
6, Warning device help worker to replace the filter screen in time.
The semi-products of the screen changer
The finished products
Application show
Quality inspection
We take only first-class steel and check every production procedure to ensure every dimension is produced precisely. A final complete inspection will be executed before delivery.

Types

Type	ScreenD&A		Overall &dimension (mm)				Heating power (KW))	Output (kg/h)
	Dia(mm)	Filtration area(cm²)	L	W	H	L1
GM-DP-R-80	60	28x2	180	170	280	700	2.4/3.2	30-180
GM-DP-R-100	80	50x2	220	200	320	810	3.5/4.7	80-280
GM-DP-R-120	100	78x2	250	220	360	970	5.0/7.2	220-480
GM-DP-R-155	130	113x2	320	270	450	1100	8.2/11.1	300-700
GM-DP-R-170	145	165x2	370	310	480	1320	9.4/12.7	400-1100
GM-DP-R-195	165	214x2	400	380	550	1470	10.2/13.8	650-1500
GM-DP-R-220	180	254x2	440	410	590	1620	13/17.5	800-1800
Remark:The output rates depend on the individual extrusion process parameters.

Packaging
Sea worthy packaging
Out side : wooden case
inside; bubble wrap film



Commissioning
We provide the operation manual for customers to gudie to install the screen changer, and at the requirement of user, salers should send technician to install and commissioning the die at site of Buyers, expenses of the trip should be borne by Buyers.

After-sales service
12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.

---
