Basic Info.
Keywords
Embroidry Machine
Embroidery Area
360*510mm (14"*20")
Key Selling Points
Automatic
Overall Dimensions
840*840*950mm
Type
Cap Embroidery Machine
Production Capacity
50 Set/Sets Per Month
Product Description
Product Description Specification
| Machine Name | DSC-W1201/DSC-W1501 |
| Heads | 1 |
| Needles per head | 12/15 |
| Maximum speed in stitches per minute (SPM) | Max 1200SPM |
| Maximum embroidery area | 360*510mm (14"*20") |
| Memory capacity | 20 million stitches or 200 designs |
| Control panel | 10" LCD display with 16 language |
| Safety features | Emergency stop button, heat dissipation fan |
| Use | Flatbed, cap, finished garments |
| Number of hoops | 10 |
| Attachments | 2pcs cap rings, 1pcs cap driver, 1pcs hoop station |
| Weight | 170kg |
| Design transfer options | Ethernet connection, USB |
| Additional features | 270-degree wide angle cap system |
| Packing Size (mm) | 840*840*950mm |
| Voltage | 100-250V |
| Power | 150W |

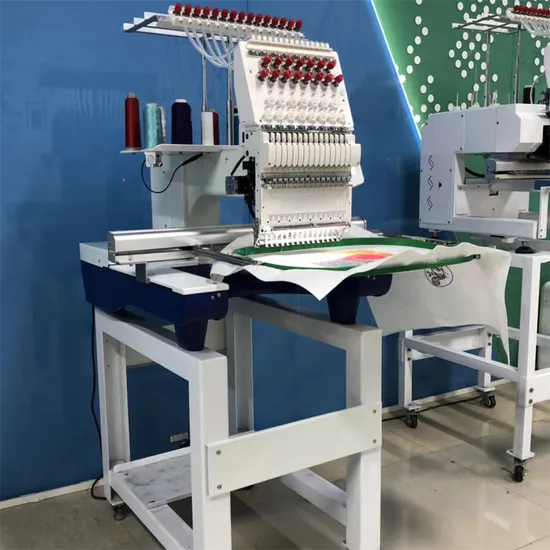

MODEL: 12/15 needle single head cap embroidery machine
Features 1,Automatic identification of embroidery designs in photo formats, such as JPG, JPEG, PNG and more. 2,10" LCD touch screen with easy operations and 16 languages:Chinese,English,French,Spanish,Portuguese, Turkish, German, Dutch, Thai, Arabic,Romania, Italian, Vietnamese, Hebreo, Polish, etc. 3,Large memory capacity: 20 million stitches or 200 designs. 4,Machine reads multiple design formats such as DST, DSB and more. 5,Thread break detection system. 6,Automatic needle threading and thread trimming. 7,270° wide angle cap frame. 8,Automatic color change with a maximum change orders of 200 times. 9,Emergency stop buttonfor timely troubleshooting. 10,USB input or direct transmission from PC via LAN port. 11,Quick changes of embroidery hoops of multiple sizes. 12,Removeable embroidery table. 13,Optional swivel casters for easy motion. Embroidery effect Enterprise Show
>>
