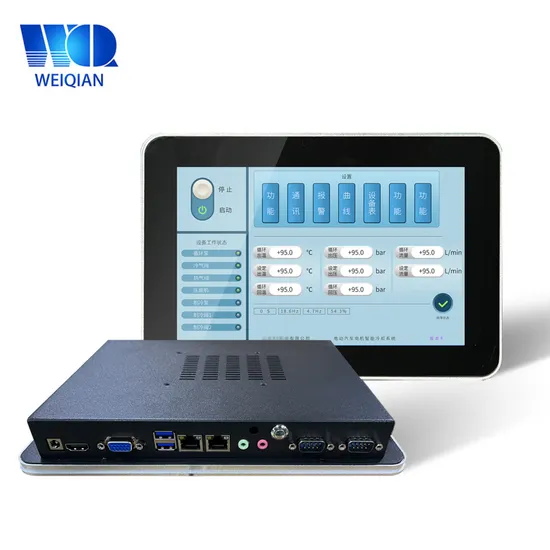

Dependable 10.1 Inch All in One Touch Screen Panel PC Large Memory J6412 CPU Embedded Industrial Touchscreen Panel PC

Product Description

Dependable 10.1 Inch All in One Touch Screen Panel PC Large Memory J6412 CPU Embedded Industrial Touchscreen Panel PC

1. Parameter

Product model	WPC-101C-JM30
Basic parameters	CPU:Quad-core J6412,Frequency 2.0GHz, max 2.6GHz Integrated graphics: Intel UHD Graphics Memory :4GB DDR4L (UP to 32G) SSD:64GB
Display screen	Size :10.1 inch Resolution :800×1280 Wide-temperature,1020k colors or 24-bit true colors LED backlight:lifetime>25000 hours
Touch screen	Capacitive touchscreen
Hardware interface	1 channel VGA interface 2 channel DB9-232 interface (COM1,COM2) 1 channel HDMI interface 2 channel USB Host2.0 interface ,support usual USB device such as mouse, keyboard, U disk, etc. 2 channel 1000M Ethernet interface 1 channel 3.5 audio interface +1 channel MIC interface 1 channel DC5.5-2.5(DC12V) power input interface 1 channel power button switch WIFI (optional)
OS	Windows10 ( Does Not Support Windows7)
Defend degree	IP65 (front panel)
Working environment	Power :DC 12V/5A Working temperature:-10~50ºC Storage temperature:-20~80ºC Working humidity:10~90%RH
specification	Shell structure:Metal Panel size:275.6x187.6(mm) Trepanning size:273.5x185.5 (mm)
Application area	Industrial control, detection device, instruments and meters, security monitoring, medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support	Support general Windows development software.

2.Interface definiton
2.1 RS-232 interface
2 channel RS-232 serial port, support the highest-level baud rate is 115200bps. The corresponding interface in Windows system COM1,COM2.
3.Exterior size
Exterior size:275.6x187.6x39 (mm)

Company Profile
FAQ Q: What kind of all-in-one industrial panel pc do you manufacture? A: Windows CE / Android / Linux Industrial Panel PC based on ARM Architecture ;Windows 7 /Windows 10 based on X86 Architecture since 2005 .Q: What is the main size for your panel pc and industrial monitor? A: 4.3" / 5"/ 7"/ 8"/10.1"/10.2"/ 10.4"/11.6"/12"/13.3"/15"/15.6"/17"/19"/21.5"/32" and wide screen the same zise. We also support the customized.Q: Does this industrial panel pc support secondary development? A: Weiqian's industrial panel pc can support secondary development.Q: What industry is your industrial panel pc applied in? A: Medical Equipment,Electric Power Equipment, Intelligent Parking ,Industrial Automation Production, Environmental Monitoring System, Smart Factory, Smart Warehouse, Smart Buildings, Smart Transportation, Smart Farming, Computer Room Monitoring system, instruments and meters, security monitoring, intelligent terminals embedded high-end application, etc.Q: Can we printing our logo on the Plastic case or Metal case ? What is MOQ ? A: Yes,we can do the silk-printing or UV printing LOGO in the case. MOQ is 200pcs.Q: Whether your industrial panel pc support the OEM / ODM? A: Weiqian 's industrial panel PC support the customization with size, function, appearance, resolution, high brightness ,boot interface and etc.Q: What kind of inspection you can provide? A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.Q: What is your warranty period? A: 1 Year warranty period & Lifetime technical support.

---
