US$40.00-60.00
|
100 Pieces
(MOQ)
|
Basic Info.
Function
Control, Energy Saving, High Efficiency and Low Noise
Casing Protection
Closed Type
Structure and Working Principle
Brushless
Certification
ISO9001, CCC, CE CQC RoHS ETL
Level of Protection
IP 44
Speed Adjustment Mode
Vsp
Transport Package
According Customer Requirement
Origin
Changzhou Jiangsu China
Production Capacity
10000pieces/Week
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 25.00cm
Package Gross Weight
2.500kg
Product Description
Product Description

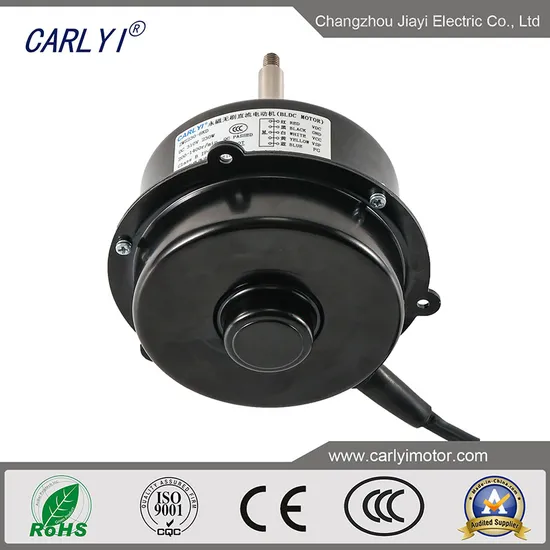

Brushless DC/EC Fan Motor for Air Purifier, Chiller, and Split Air Conditioning Outdoor Unit
The above-mentioned specification is a representative, and can also be designed and manufactured according to customer requirements.
Main Technical Data of Brushless DC/EC Fan Motor for Air Purifier, Chiller, and Split Air Conditioning Outdoor Unit:
Model
| Vol (V)
| AMPS (A) | RPM (r/min) | Output (W)
| Vsp(V) |
ZWD006510SDD
| Vdc 310 | 0.27 | 300-900 | 65W | 0-6.5 |
ZWD008010SDD
| Vdc 310 | 0.32 | 300-900 | 80W | 0-6.5 |
ZWD012010SDD
| Vdc 310 | 0.49 | 300-900 | 120W | 0-6.5 |
ZWD015010SDD
| Vdc 310 | 0.61 | 300-900 | 150W | 0-6.5 |
ZWD020010SDD
| Vdc 310 | 0.81 | 300-900 | 200W | 0-6.5 |
ZWD025010SDD
| Vdc 310 | 1.1 | 300-900 | 250W | 0-6.5 |
low noise | IP 44 protection level, Locked rotor protection, open phase protection, over-voltage protection, over-current overheating protection | High efficiency, wide speed adjustment range, VSP mode | programmable |
Materials
Silent bearing, driving board, copper wire
Are you tired of dealing with noisy, power-hungry air conditioner fan motors in your home or office?
If so, we have the perfect solution for you: our brushless high-efficiency conditioner fan motor.
Our motor is designed to be more energy-efficient than traditional fan motors, which means you'll save money on your power bills while enjoying the same cooling performance. Plus, it's brushless, so it's much quieter than standard motors and has a longer lifespan.
Here are some of the benefits of choosing our brushless high-efficiency conditioner fan motor:
1) Energy-efficient: Save money on your power bills while enjoying cool air.
2) Quiet: Say goodbye to noisy fan motors that disrupt your peace.
3) Long lifespan: Our motor is designed to last for years, so you won't have to worry about replacing it anytime soon.
4) Environmentally friendly: Our motor is designed with sustainability in mind, so you can feel good about choosing an eco-friendly option
We are looking forward to helping you stay cool and comfortable all year round.
Application
Application
Air purifier, chiller, split air conditioning outdoor unit Product Parameters
Performance:
DC 310V
Power output up to:250W
Variable operation speedDrawing of Brushless DC Fan Motor for Air Purifier, Chiller, and Split Air Conditioning Outdoor Unit:
Recommendation
Main Products of Brushless DC Fan Motor for Air Purifier, Chiller, and Split Air Conditioning Outdoor Unit:
Terms
Terms:
1. Trade Terms: FOB, CIF, CNF, EXW, DOOR TO DOOR.
2. Payment Terms: T/T, L/C, Western Union.
3. Payment Condition: 50% deposit in advance, 50% balance before delivery.
4. Delivery Time: 15-30 days after deposit (if T/T).
5. Shipping: By sea, by air and by express delivery
Company Profile
Changzhou Jiayi Electric Co., Ltd. was established in 2013. Is a manufacturer focused on innovative motor solutions for the residential and commercial HVAC and refrigeration industries. The company has a skilled R & D team and has more than 10 years of motor research and development, design, production, and sales experience. With an annual output of 1 million motor production capacity. The new generation of BLDC motors and EC motors developed by CARLYI use a unique high flux and shock absorption design, coupled with high-quality bearings so that the motor has more torque the same. CARLYI branded motors have been approved by CCC, ISO9001, CE, and RoHS certification. |
Packaging & Shipping
Packing and Shiping:
FAQ
FAQ of Brushless DC Fan Motor for Air Purifier, Chiller, and Split Air Conditioning Outdoor Unit:
Q1. What types of motors does your company manufacture?
A: We specialize in manufacturing motors designed for residential, and commercial HVAC (Heating, Ventilation, and Air Conditioning), and refrigeration equipment. These motors are engineered to meet the specific demands of these applications.
Q2. Are your motors energy-efficient?
A: Yes, our motors are designed with a focus on energy efficiency. We employ advanced technologies and materials to ensure that our motors consume minimal energy while delivering optimal performance.
Q3. Can you provide custom motor solutions?
A: Absolutely! We understand that each application may have unique requirements. Our team is experienced in developing custom motor solutions tailored to your specific needs. Contact our sales department to discuss your customization requirements.
Q4. What is the typical lifespan of your motors?
A: Our motors are built to last. The lifespan of our motors varies depending on usage and maintenance, but they are designed for long-term reliability and durability, especially when properly maintained.
Q5. Do you provide technical support and assistance?
A: Yes, we offer comprehensive technical support and assistance. Our team of experts is available to answer your questions, provide guidance on motor selection, and offer troubleshooting assistance whenever needed.
Q6. Are your motors compliant with industry standards and regulations?
A: Yes, our motors are manufactured to meet or exceed industry standards and regulations. We prioritize safety, efficiency, and environmental compliance in our motor designs. We conduct inspections by the ISO9001 standard and are overseen by our experienced QC staff.
Q7. How do I request a quote or place an order?
A: You can request a quote or place an order by contacting our sales department through our website or by reaching out to our dedicated sales representatives. We will provide you with a competitive quote and guide you through the ordering process.
Q8. Where is your company located, and do you ship internationally?
A: Our company is headquartered in Changzhou City, Jiangsu Province, China. We offer international shipping to serve customers worldwide. Contact us for shipping and distribution details specific to your region.
Q9. Do you have a warranty policy for your motors?
A: Yes, we offer warranties on our motors to ensure customer satisfaction and peace of mind. For the motors, we have a long enough 18-month guarantee, and for the service, we offer 24-hour technical support and barrier-free communication.
Q10: How long does it take to prepare samples and process batch orders?
A: Sample preparation usually takes 3 days if we have it in hand and around a week for custom samples. Batch order production typically spans 15-30 days, with newly developed items possibly requiring an extra two weeks.
If you have any more specific questions or need further assistance, please feel free to get in touch with our team.
>>
