Efficient Eco-Friendly Global Shipping Pet Bottle Waste Plastic Recycling Wasing Line

Product Description

Product Description
HaoRui Global Shipping PET Bottle Waste Plastic Recycling Wasing Line Machinery
PET Bottle Plastic Recycling Washing line Machine from Baoding Haorui Machinery Manufacturing Co.,Ltd. is used for waste PET bottle plastic recycling.

1.Specially designed for recycling PET bottles of various types, PET bottle crushing, cleaning and recycling line of Baoding Haorui Machinery is the equipment for waste PET bottle crushing, cleaning, bottle cap label separating, drying and packaging.
2.The production line consists mainly of bale opener, screw loader, trommel screen, pre-washer,conveyor belt, label remover, sorting platform, crusher, horizontal packing auger, floating tank, dewatering machine, hot washer, high speed friction washing machine, wind conveyor, pipe dryer, paper/pvc/label seperation, silo storage and electric panel.
3.Featuring high automation, low energy consumption, high efficiency and clean washing, the entire equipment turns waste PET bottles to recyclable PET bottle pieces effectively.

Advantages of PET Bottle Plastic Recycling Washing line Machine:
1. High capacity up to 6000kg/h.
2. All machines design are based on easy to disassembly ,easy to clean,save maintenance cost.
3. PE flakes moisture less than 1%.
4. 25~30days producing time, we finish all the producing in our own factory.
5. Over 30 years' experiences in plastic recycling machine.
6. After sale service is complete.

Product Parameters

PET Bottle Plastic Recycling Washing line Machine can be customized according to your request.
NO.	Type	Capacity	Electric Power	Weight
1	500	500~800kg/h	80~150kw	20tons
2	1000	1000~1500kg/h	100~200kw	20tons
3	2000	2000~2500kg/h	200~250kw	30tons
4	3000	3000~3500kg/h	300~350kw	40tons
5	5000	5000~5500kg/h	500~600kw	50tons
6	6000	6000~6500kg/h	600~800kw	70tons

Detailed Photos
Track the entire production line until the product reaches the customers.1.Take videos or photos of the production process and details for customers during production.
2.Take videos or photos of the finished products for customers after production.
3.Take videos or photos of the packing for customers when packing.

Screw Loader
Usage: Screw type feeding
1. Dia of worm shaft: 600mm
2. The effective length: 6000mm
3. Motor power: 7.5kw
4. Steel plate thickness: 3mm
5. Thickness of screw: 8mm
6. With Inverter

Belt Conveyor
Usage: Carry and transport plastic materials

1. All frames and supporters are made of carbon steel
2. Width of belt: 1000mm
3. Length of belt: 7000mm
4. The material of belt: rubber
5. Motor power: 3kw
6. The thickness of two side plate: 3mm
7. Bearing: TR bearing

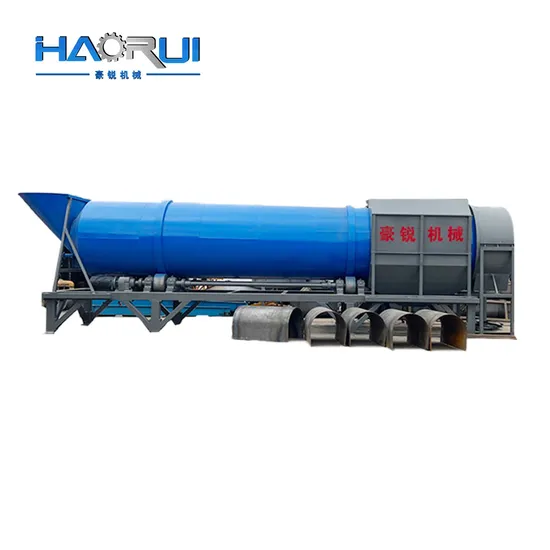

Trommel screen and pre washer
Usage: Material sorting is controlled by the size of particle size. Screen and clean stone particles and silt from bottles
1. Motor power: 22kw
2. Material: Q235
3. Inner dia.: 2100mm
4. Outer dia.: 2220mm
5. Length: 13500mm
6. Feeding entrance height: 4M
7. Exit material hole height: 0.8M
Label Remover
Usage: Seperate the label of the PET bottles
1. Motor Power: 37kw/6 grade
2. Blade material: alloy
3. Suction label machine power: 7.5kw*3
4. Shaft length: 6000mm
5. Tube Dia: 900mm
6. Height: 2500mm
7. Inner thickness: 10mm
8. Label remover power: 1.5kw
9. Size: 6500mm*1260mm*3600mm

Crusher
Usage: Crush plastic materials into flakes
1. Motor power: 75KW *3kw
2. The cover opening method: Driven by motor
3. The number of rotating blades: 6 pcs
4. The number of fixed blades: 4pcs
5. The rotation speed of rotating blades: 630RPM
6. The cover opening motor: 2.2KW
7. Screw strength: 12.9
8. Bearing: HRB bearing
9. Screw material pressing motor: 2.2kw/grade4

Floating Tank
Usage: Rinse PET flakes, automatically separate bottles caps and other floating debris, effectively separately varieties of silt and paper scraps.
1. Motor Power: 4KW/grade 4
2. Roller wheel motor power: 2.2kw/grade4
3. The number of roller wheels: 4 pcs
4. The number of bottle worm shaft: 1pc
5. Dimension: 6m(L)*1.4m(W)*2m(H)
6. The thickness of steel plate: 4mm
7. The Dia. of bottom worm shaft: 400mm
8. Bottom thickness helical blades: 5mm
9. With working platform,and bottle cap collecting machine
10. Material: Carbon steel

Dewatering Machine
Usage: Flakes through centrifugally spinning,automatic feeding and automatic discharging
1.Motor power: 75KW
2. Motor speed: 1440rpm
3. The Dia.of mesh: 1.8mm
4. The thickness of mesh: 2mm
5. Discharge plastic flakes from side, drain water from bottom
6. Raw material of mesh: stainless steel
7. Raw material of helical blades: stainless steel
8. Bearing: ZWZ bearing
9. Length: 2500mm

Hot Washer
Usage: Heat and wash the PET flakes
1. Heating mode: steam
2. Motor power: 15kW
3. Water temperature : Around 90ºC
4. Cylinder size (Dia.× H): 2.3m×3.5m
5. Raw material: carbon steel
6. Plate thickness: 4mm
7. Double layers with insulation
8. Equipped with operation platform
9. Consist of a water tank to collect floating plastic materials, such as PE label,etc. The treated water could be recycled.
10. Material: Carbon steel
High Speed Friction Washing Machine
Usage: Quick and efficient kneading, cleaning and separation
1. Motor Power: 55KW
2. Rotation speed: 1440rpm
3. Length: 3000mm
4. The raw material of: carbon steel
5. The raw material of mesh: stainless steel
6. The raw material of blade: stainless steel
7. Bearing: UCF bearing
8. The thickness of plate: 4mm

Wind Conveyor
Usage: Make the material more dry then seperate the pvc from the material
1. Motor power: 18.5KW
2. Material: Stainless steel

PVC Seperator
Usage: Seperate the pvc from the material
1. Motor: 1.5kw/grade 4
2. Fan power: 2.2kw*3(grade 2)
3. PVC separator ratio: 0.03%
4. Size: 2M(L)*1.3M(W)*5.4M(H)
5. Material: Stainless steel

Silo Storage
Usage: Store the final material
Material: Carbon steel


Our Advantages

Why Choose Us?
Advantages of our factory:
1. 100+ Workers
2. 30+ years' factory, factory since 1992.
3. 30000m2 factory
4. 500 customers in 88 countries
5. R&D engineer 8 persons
6. Famous "HAORUI" brand in Africa
7. 13 patent certification 8. OEM service is available .
9. Quick delivery order is available.
10. Big capacity is available. High capacity up to 6000kg/h.
11. PET Flakes moisture ratio less than 1%.
12. PVC Separator ratioe ratio can be 0.03%.
13. Low Energy Comsumption: Saving 1 million dollars every year.
14. 25~30 days producing time, we finish all the producing in our own factory.
15. After sale service is complete. After Sales Service

Local offline after-sales service in Africa, Europe , South Asia, Southeast Asia, South, South America, Middle East and other countries, engineers can go to customer factories to personally guide and repair mechanical problems.
1. Maintenance
2. Repairs
3. Spare parts
Packaging & Shipping

Safe Transportation to Your Hands


Company Profile
Baoding Haorui Machinery Manufacturing Co.,Itd was established in 1992, is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE plastic bag/film crushing and washing machine, granulator.
We are located in baimiao industry zone,baoding city, China. The convenient transportation which is near to Beijing airport and Tianjin port can guarantee the delivery time.
There are over 100 technicians in our workshops which covers 20000 square meters. Over 30 years of plastic recycling machines production experience, enable us to be TOP3 plastic recycling machine factory in China. OEM and ODM service are also welcome.
We insist on the principle of "quality is first" and inspect the machine after producing "which make our market more popular in Domestic and we have gained a global sales network reaching Middle East, Africa, South America, South East, South Asia and so on.
Company Photos

Workshop Photos
Certifications Photos
Customers
500 customers in 88 countries of Africa, Europe, South Asian, Southeast Asia, South America, Middle East and other countries.
Our customers are using our machines.
FAQ1. Who are we?
Baoding Haorui Machinery Manufacturing Co.,Itd was established in1992. We are located in baimiao industry zone,shunping county,China. near to beijing airport and tianjin seaport.
2. How can we guarantee quality?
Inspection will be made before delivery.
3. What can you buy from us?
PET recycling machine, PP PE HDPE LDPE recycling machie, Plastic granulator.
4. Why should you buy from us not from other suppliers?
a) Top 3 plastic recycling machine factory in China:
We are TOP 3 PET recycling machine factory in China. We can produce whole set machine within 20 days.
b) More than 20 professional technicians.
Based on over 20 professional technicians ,our machine design is unique and outstanding.
c) We keep the principle "quality is first".
We promise to use the good quality raw material to ensure the machine quality.
d) OEM service is available. OEM or Agent is welcomed.5.When can you contact us?If you have any needs related to our products, please feel free to contact us. Looking forward to our cooperation!

---
