Universal Knee Type Horizontal Vertical Milling Machine XL6036b

Product Description

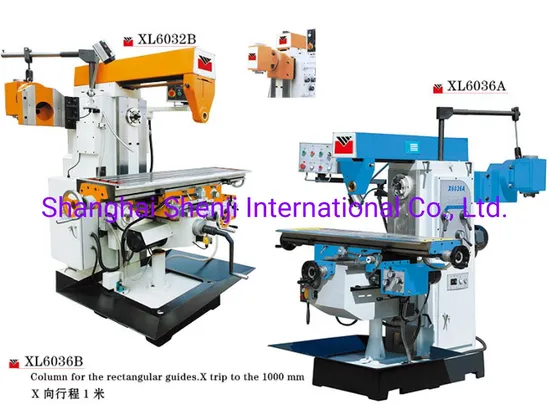

Universal Knee type horizontal vertical milling machine XL6036B
1.Our proprietary designs and exacting manufacturing specifications insure that every machine we sell meets or exceeds our customers' needs and expectations.
2. The foundation of our commitment to deliver top-quality machines to our customers is our 100% inspection Quality Control process using state-of-the-art optical measurement systems to support both manufacturing and product design.
3. We believe that this is the only way to ensure that we deliver the finest products to customers who demand precise, reliable machines in their applications.

Model	XL6036A	XL6036B
Spindle taper	7:24 ISO50	7:24 ISO50
Distance from horizontal spindle to worktable	0-380	0-350
Distance from horizontal spindle to supporting	175	175
Spindle speed range	60-1800(12 steps)	60-1800(12 steps)
Table size	1250×360	1250×360
Table travel(x/y/z)	600/320/380	1000/320/350
Range of longitudinal, cross travel	22-550(8 steps)(max.810)	15-370(8 steps)(max.540)
Vertical up-down(z axis) speed table	590	590
T-slot NO./width/distance of rotary table	3/18/80	3/18/80
Cantilever travel	500	500
Main motor	4	4
Motor for rapid device of table	0.75	0.75
Motor of lifted table	1.1	1.1
Motor of cooling pumps	90	90
Speed of cooling pumps	25	25
N.W/G.W.	1900/2200	2100/2400
Overall dimension	1880x1700x1700	2220×1790×1700

---
