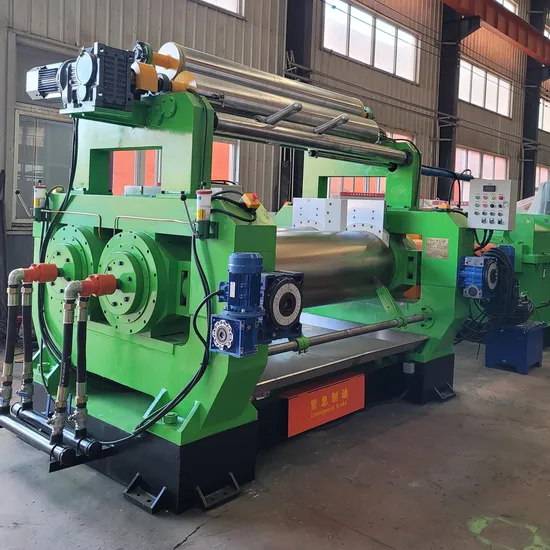

16"/18" /22" / 24" /32" Two Roll Mixing Mill China Deyu Machinery
|
US$26,169.00-29,169.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Transport Package
Steel Pallet
Production Capacity
5000 Sets/Year
Product Description
Deyu mixing mill products:
Detailed specification:
| | XK-160 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-610 | XK-660 | XKY-450 |
| roll diameter (mm) | 160 | 360 | 400 | 450 | 550 | 560-510 | 610 | 660 | 450 |
| working length | 320 | 900 | 1000 | 1200 | 1530 | 1530 | 1930 | 2130 | 1200 |
front roll linear speed
m/min | 9m | 16.7 | 18.65 | 21.80 | 28 | 26.4 | 30.5 | 28 | 25.6 |
| speed ratio of rolls | 1:1.35 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.2 | 1:1.1 | 1:1.24 | 1:1.08 |
max. roller range
(mm) | 4.5 | 10 | 10 | 12 | 16 | 15 | 15 | 15 | 12 |
| one addition (kg) | 1-2 | 20-25 | 18-35 | 80 | 120 | 120 | 140 | 165 | 80 |
| motor power (kw) | 5.5 | 30 | 45 | 55 | 110 | 90 | 160 | 185/250 | 55 |
overall dimention
L x W x H mm | 1133
920
1394 | 4200
1780
1760 | 4471
1850
1760 | 5005
1790
1830 | 6300
2230
1900 | 5450
2200
1580 | 6575
2910
2000 | 6700
3400
2100 | 5005
1790
1830 |
| gross weight (ton) | 2 | 6.5 | 8.3 | 10 | 22 | 22.5 | 44 | 49 | 10 |
>>
