US$1.00-10.00
|
1 Piece
(MOQ)
|
Basic Info.
Grade
Gr1,Gr2,Gr3,Gr5,Gr7,Gr12
Production Capacity
600ton/Year
Product Description

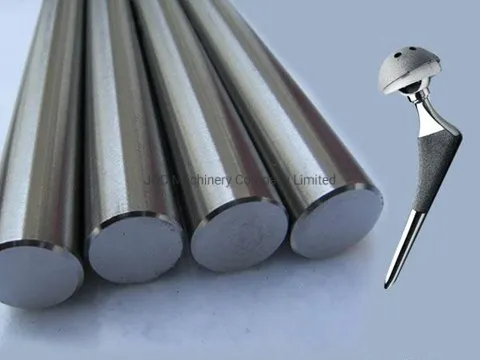

| Item | Titanium Bar/ Titanium Rod |
| Application | Heat exchanger Petro Chemical Industry Medical instruments and equipment Aerospace |
| Grade | GR1, GR2, GR3, GR5, GR7, GR12 |
| Technical Standards | ASTM B348 |
| Outer Diameter /mm | 6mm - 400mm |
| Length /m | up to 12m |
Chemical Composition (weight %, max or range)
| Grade | N | C | H | Fe | O | Al | V | Pd | Mo | Ni |
| GR 1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | | | | | |
| GR 2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | | | | | |
| GR 3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | | | | | |
| GR 5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | | | |
| GR 7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | | | 0.12-0.25 | | |
| GR 12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | | | | 0.2-0.4 | 0.6-0.9 |
Tensile Requirements
| Grade | Tensile | Yield | Elongation in 4D, min | Reduction of Area, min |
| Mpa | Mpa | % | % |
| GR 1 | 240 | 138 | 24 | 30 |
| GR 2 | 345 | 275 | 20 | 30 |
| GR 3 | 450 | 380 | 18 | 30 |
| GR 5 | 895 | 828 | 10 | 25 |
| GR 7 | 345 | 275 | 20 | 30 |
| GR 12 | 483 | 345 | 18 | 25 |
JOC Machinery Co. Ltd., is a subsidiary of Jiangsu Overseas Group Corp. (JOC) and has experienced personnel of exporting different kinds of machinery, castings, forgings, bearings, heat exchange pipes, large-diameter welded tubes, coil tubes, titanium, zirconium, nickel, tantalum and other new materials used in pressurized containers for 20 years.
We have established business relations with customers from USA, Canada, Japan, Australia, Europe and South-east Asia countries. We provide not only quality products but also best service to you.
>>
