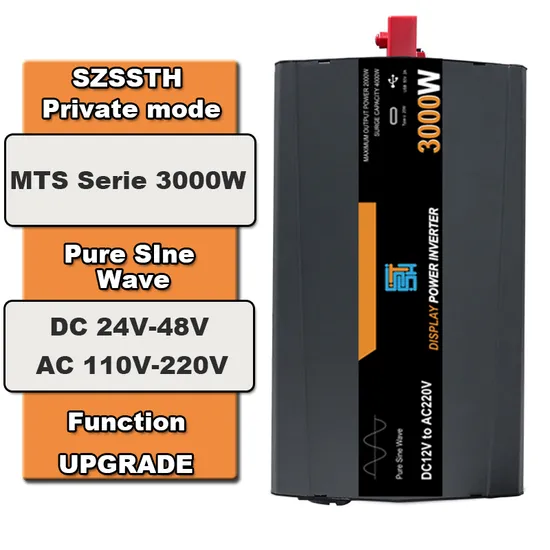

OEM DC 12V 24V to AC 110V 220V 3000W Pure Sine Wave off Grid Solar Power Inverter

Product Description

Features:
1. Pure sine wave output waveform
2. High transform efficiency, quick start
3. High adaptability and stability
4. Automatic over-current and output short-circuit protection to avoid damage to equipment
5. Temperature-controlled fan, safe & efficient
6. Safe and reliable with a built-in fuse
7.Customizable input voltage such as 36V,48V,72V,96V,etc. Output voltage such as 120v, 130v, 200V,240v, etc
8. Different kinds of sockets are available

Product Parameters

Model No.	MTS-1000W	MTS-2000W	MTS-3000W	MTS-4000W	MTS-5000W	MTS-6000W
Rated Power	1000W	2000W	3000W	4000W	5000W	6000W
Peak Power	2000W	4000W	6000W	8000W	10000W	12000W
Input voltage	DC 12V(10.4-14.8V)/24V20-28V)/48V
Output voltage	110V/220V /230V /240V
Waveform	Pure sine wave
Frequency	50Hz /60Hz+4Hz
Availability power	90.50%
Type-C output	PD20W
USB output	5V 2.4A
Socket	One AC oulet	Dual AC outlets (EU, USA,Universal, Brazil socket optional )
Remote control	3W remote line control /5iw remote control
Cooling fan	Yes
Low voltage alarm	10.5V+0.5V /20.5V+0.5V
Low voltage range	9.6V/20.5V
High voltage range	>14.8V /31V
Non-load current	50.4A
Overload protection	>1000W /2000W /3000W /4000W/ 5000W
Reverse protection	Yes
Short-circuit protection	Ves
Dimension	348*185*95MM	398*229*110MM	514.8*229*110MM	545*229*110MM	545*229*110MM	545*229*110MM
Warranty	1 Year

MTS series is an off grid pure sine wave inverter, which adopts microprocessor and full digital control. The output AC voltage and frequency can be flexibly adjusted through the dial switch on the rear panel.
The application scope includes computer, communication, yacht, RV, family leisure and entertainment equipment, motors, electric tools, industrial control instruments and equipment, various types of AV appliances and other applications.
MTS Pure Sine Wave Inverters - Customized for the world's leading sockets, thoughtful power adaptation MTS pure sine wave inverter, for your power needs to provide the world's mainstream socket customization services, so that you can enjoy the world's intimate power adaptation, travel, enjoy unlimited power!
This is the common application of inverters, it also includes the following equipment can constitute a complete operating system
• Generator or Utility. • PV modules This Is The Common Application Of Inverters, It Also Includes The Following Equipment Can Constitute A Complete Operating System
•Generator Or Utility • PV Modules Inverter Can Be Applied To Most Home And Office Appliances, Such As Refrigerators, Air Conditioners, Notebooks; Consult Us For Additional System Architectures Based On Your Requirements The length of the wire should be as short as possible, and the following should not exceed 1.5 meters. The wire diameter should be selected according to the regulations. The wire can carry the maximum current input. If the wire is too thin, it will cause overheating of the wire and even cause ignition hazard

Rated current (Ampere)	Sectional area of conductor (m m2)	AWG
16A-25A	2.5	12
25A-32A	4	10
32A-40A	6	8
40A-60A	10	6
63A-80A	16	4
80A-100A	25	2
100A-125A	35	1
>=125A	50	0

We have passed Rohs certification, CE certification, BSCI certification and design patent and other international certifications. Strictly control materials, processing, assembly, debugging, testing, packaging, transportation and
other links to ensure the performance and quality of electrical products
More than 30,000 customers are attracted by our company, because we strictly control the installation and inspection of electrical products before leaving3 the factory and the test before delivery, so that we can do the best we can, so that our customers can use our products at ease
········································································································································································
Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business, win-to-win.
·········································································································································································
Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.
·········································································································································································
Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.
·········································································································································································
Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.
·········································································································································································
Q5: How do I pay you?
A5: We accept ****** Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.
·········································································································································································
Q6: What kind of warranty for your product?
A6:We provides one year warranty.
·········································································································································································
Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.
·········································································································································································
Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP
·········································································································································································
Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.
·········································································································································································
Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was. ·········································································································································································

---
