Advanced Wl200/580-34 CNC Lathe for Efficient Metal Processing

Product Description

·The 30° inclined monolithic bed construction guarantees exceptional rigidity, ensuring stability and precision in every task.
·Employing Class C3 ball screws, this machine delivers unparalleled positioning accuracy and long-lasting performance.
·Our V-belt drive spindle system minimizes rpm while maximizing torque at full horsepower output, ensuring efficient and powerful operation.
·An optimal array of structures designed to fit customer needs, including extended beds, turret punch presses, and servo axes, provides unmatched versatility.
·Featuring a compact design with a built-in motor, the machine's standard bed style significantly reduces overall length, saving precious floor space.
·With an ergonomic design, the machine ensures ease of operation and maintenance, enhancing user experience and productivity.
Product Parameters

Basic specification		Unit	WL 200/580
Maximum Swing Diameter		mm	φ650
Maximum swivelling diameter of the bed saddle		mm	φ630
Maximum cutting diameter		mm	φ450
Maximum cutting length		mm	570
spindle
Spindle motor power (continuous/30 min)		kw	11/15
Maximum spindle speed		rpm	4200
Spindle nose			A2-6
Spindle through-hole diameter		mm	φ78
Bar capacity		mm	φ65
Collet size		inch	8"
feed axis
Maximum stroke X/Z		mm	250/580
X/Z axis motor power		kw	2. 4 [1.8 FANUC]
Fast shift speed X/Z		m/min	30/30
X/Z slide type			linear way
C-axis (optional )
Minimum spindle positioning accuracy
Dynamic accuracy
turret
Turret Capacity			12
Quadratic cutter		mm	25
Round cutter		mm	φ40
Power Turret Motor Power		kw
Power Turret Tool Specifications
Power tool speed		rpm
tailstock
Mandrel Diameter		mm	φ70
Mandrel Stroke		mm	150
Tailstock body stroke		mm	460
Taper hole taper			MT#5
Programmable Control Mandrel/Tailstock Body			yes/no
Tailstock body movement method			saddle-driven
Mechanical specifications
Positioning accuracy (X/Z)		mm	±0.004
Repeat Positioning Accuracy(X/Z)		mm	±0.003
CNC system			syntec or fanuc
chip conveyor			sidebar
Exterior(L×W×H)		mm	2809x1700x1695
Machine weight		kg	4000

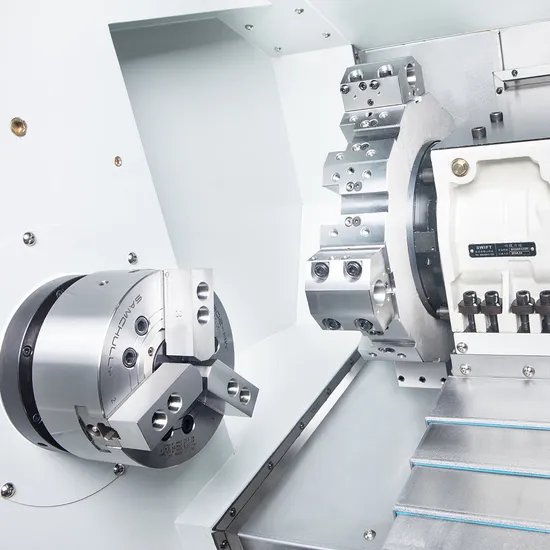

Detailed Photos
The WL 200/580 series boasts a low center of gravity 30° inclined bed made from Meehanna cast iron, coupled with high-strength reinforcement and a heat flow balance design. This sophisticated engineering ensures superb vibration damping, leading to stellar performance and incredible cost efficiency. The use of premium Meehanna cast iron and high-strength reinforcement, along with a heat flow balance design, guarantees excellent vibration control and outstanding performance, providing exceptional value.
The spindle features a high-rigidity structure, driven by a special high-performance V-belt system that mitigates motor heat impact on spindle accuracy. The precisely adjusted pulley reduction ratio lowers the minimum speed at full horsepower, enhancing torque.
High-load servo motors accelerate tool change positioning, significantly reducing machining time. The ultra-high precision curved tooth clutch ensures precise turret positioning and robustness under any cutting condition, enhancing operational efficiency.

Precision-ground C3 grade ball screws with a pre-tensioned design effectively counteract temperature rise and deformation, ensuring the highest level of positioning accuracy and durability.
The X and Z axes are meticulously crafted with a large span and equipped with high-performance, high-precision linear slides. This design guarantees superior precision, speed, and low friction, resulting in extraordinary machine performance.

Suzhou Wugan Intelligent Equipment Co., Ltd. Specialises in the production of high-performance CNC lathes and high-performance CNC turning centres, which are designed on the basis of the latest international lathe technology. Based on the latest international lathe cutting-edge technology as the basis of design, combined with high rigidity, high precision, high productivity and exquisite appearance and other characteristics, to provide customers with efficient and reliable cutting performance. In order to meet the higher requirements of customers, the company also has a high-performance mill-turn combined model available for use, which can be turned, milled and drilled in the same machine, and other combined processing functions, which not only increases the output capacity of the product, but also makes this series of lathes can easily meet the various processing needs of different customers.

---
