1-2tph Chicken Pig Cattle Goat Cow Pellet Machine Plant for Animal Feed Mill Process

Product Description

Product Description
1-2TPH Animal Feed Plant (for both poultry feed or livestock feed)
1-2TPH chicken pig cattle goat cow pellet machine plant for animal feed mill process
Brief introduction of 1-2tph poultry feed livestock feed animal feed plant
Our company is professional manufacture to produce feed machinery and specializes feed project engineering. We can provide customers with poultry feed (chicken, duck, goose, etc.), livestock feed (pigs, rabbits, etc.), ruminant feed (cattle, sheep, camel, horse, etc.), aquatic pellet feed (Grass carp, Herring, Bighead carp, Silver Carp, etc.), aquatic extruded feed (floating & sinking fish feed, Tilapia, Catfish, Sea bass, etc.), Premix (various additives, etc.), complete feed plant solutions to meet different requires of customers.
Process flow of 1-2tph poultry feed livestock feed animal feed plant
Small animal feed plant is the abbreviation of small manual batching feed processing line. Generally the capacity is 1-2tph. The investment for complete plant is low, and all equipment can be installed in the workshop. Meanwhile, the civil works is simple and the cost is low. It is especially suitable for small feed mills and farms.
Total power consumption: 59kw.
Space for feed plant workshop: length 10.7, width 5.2m, height 6m.
Steam boiler capacity: 300kg.
Project description
Raw material receiving & grinding & mixing section
The grains and powder materials are fed separately, after quickly grinding by hammer mill , the mixer mixes all the materials evenly. Meanwhile, the additives and oil can be fed into the mixer directly during mixing.
Pelletizing & cooling & packing section
High efficient pelletizing by ring die pellet mill, then cooler machine reduces the pellet temperature and moisture of the pellet feed, and the pellet can be packaged in bags by manual after sifting.
Detailed Photos
Final Product Show

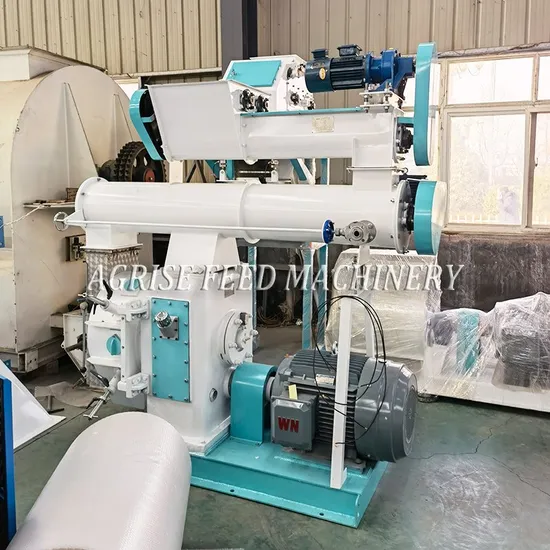

Pellet Machine Parameter

Model	Die dia (mm)	Main power(kw)	Conditioner power(kw)	Feeder power(kw)	Capacity(tph)
SZLH250	Φ250	22	2.2	0.55	1-3
SZLH320	Φ320	37	2.2	0.55	2-5
SZLH350	Φ350	55	2.2	0.55	3-6
SZLH420	Φ420	110	5.5/7.5	1.5	5-8
SZLH508	Φ508	132/160	11	1.5	12-18
SZLH558	Φ558	160/200	15/18.5	2.2	18-25

Packaging & Shipping
Customers Visiting

---
