US$2,000.00-18,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Milling Machine
RAM Turret Milling Machine
Table Size
230X1067mm 9X42"
Spindle Speed
65- 4500 Rpm 50Hz
Spindle Taper
R8, ISO30 ISO40
Transport Package
1400X1476X2030mm
Production Capacity
100 Sets/Month
Product Description

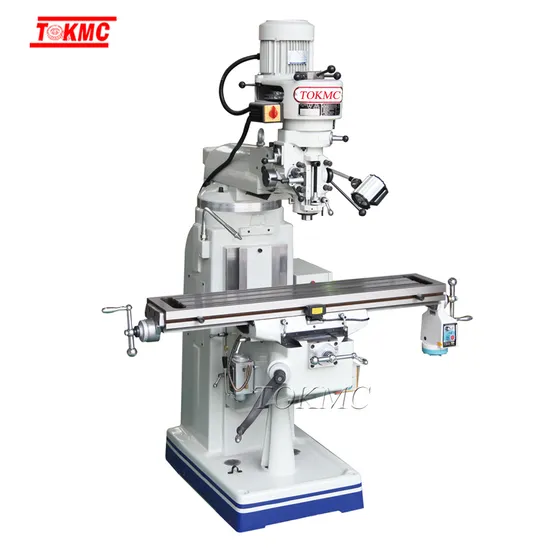

RAM TURRET VERTICAL MILLING MACHINE C/W 3 AXIS DRO
X6323B
•Rectangular guide way is adopted on Y -axis, 55° dovetail guide way on Z axis
•Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.
•The surface of worktable and 3 axes guide way are hardened and precision ground.
•Milling head adopts 3HP motor, standard spindle 16 speed step pulley head,optional is variable speed.
| Model | unit | X6323A | X6323B |
| Table size | mm | 230x1067(9'x42")
230x1246(9"x49") |
| Longitudinal travel | mm | 670 | 610 |
| 850 | 790 |
| Cross travel | mm | 310 | 310 |
| Vertical travel | mm | 410 | 390 |
| Ram travel | mm | 315 | 315 |
| T-slot | | 3x16 | 3x16 |
| Spindle travel | mm | 127 | 127 |
| spindle speed | rpm | 16 steps
50HZ:65-4500 60HZ:80-5440
Optional:variable 65-4500 |
| Spindle motor | hp | 3 | 3 |
| Spindle taper | | R8 | R8 |
| Auto quill feed | mm | 0.04,0.08,0.15 /0.0015",0.003",0.006" revolution |
| Head swivel L/R | | 90° | 90° |
| Head tilting F/B | | 45° | 45° |
| Weight | kg | 1000 | 1060 |
>>
