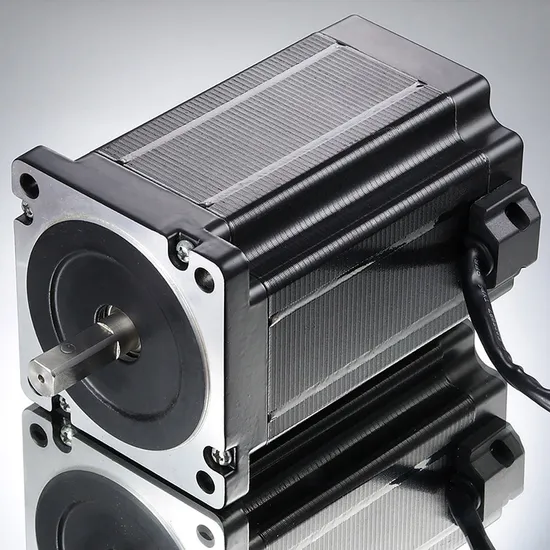

86 mm NEMA34 High Torque CNC Hybrid Electrical Stepper Motor

Product Description

86 mm High Torque Hybrid Stepper Electrical Motor for CNC Features: High torqueHigh accuracySmooth movement
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included. The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life. All the derived products of us can be customized for your needs.
Product Description
1. Speficications:
Motor Model: 86BYGH 204-C-30
Step Angle: 1.8°± 5% full step, no load Motor Length: 100 mm (3.94 in)
Holding Torque: 4900 mNm (694 oz-in)
Rated Current: 5.2 A DC
Resistance per Phase: 0.43 ohm
Inductance per Phase: 2.7 mH
Shaft Length: 30 mm (1.18 in)
Shaft: D-Cut Shaft
Connectors: Lead Wires
Ambient Temperature: -24 ºC - +60 ºC Relative humidity: 90% MAX Resistance Accuracy: ± 10% Insulation Resistance: Larger than 100mΩ 500V DC Dielectric Strength: 600V AC for 1S, leakage current less than 1mA. 2. Note:
Performance and parameters are customized, just simply send your motor diagram or samples to us, we will provide the competitive price for your reference.
3.Payment term:T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2015 quality system, all of raw materials comply with RoHS,CE contact us and talk details.
Contacts: Ms. Rita Law
Mobile: (+86) 13631101993
shengyangmotor.en.made-in-china.com

Series & Length	Model Number	Holding Torque	Rated Current	Resistance per Phase	Inductance per Phase
		mNm oz-in	A	ohm	Mh
86BYGH0 68mm (2.64in)	86BGYH002	2500 354	3.8	0.8	6
86BYGH1 77mm (3.03in)	86BYGH102	411.6 58.28	5	0.65	4.5
86BYGH2 100mm 3.94in	86BYGH204	4900 694	5.2	0.43	2.7

---
