China Tissue Paper Automatic Facial Tissue Log Saw Machine

Product Description

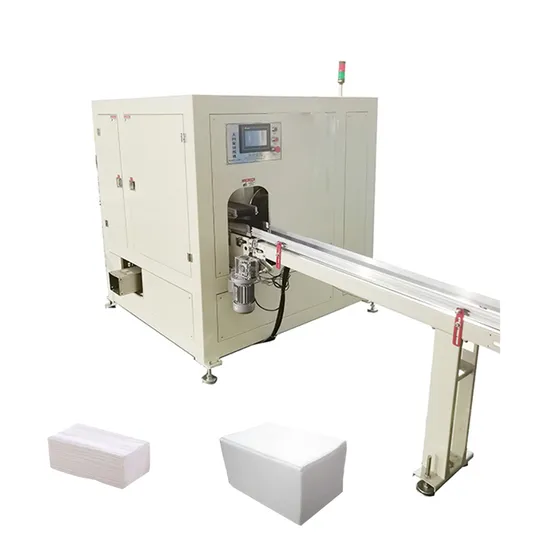

Automatic Log Saw Facial Tissue Cutting Machine
1:The designing and manufacturing adopt the latest electronic and servo drive technique, greatly enhanced the cutting stability and cutting quality. 2:This log saw features of high speed, two feeding channel for 150 cuts, one set of FC150-2L can be cooperated use with the YH-7L(200), easily and convenient adjustment for cutting different size. Clamping and cutting unit can be easily adjust for different size, no need for spares interchange, the cutting is clean and equal, won't extruding or break the tissue
3:Feeding system is the specific characteristic of the FC150-2L, the whole piece of the tissue can be feeding into the cutting section for setted length cutting, won't extruding or break the tissue. Adopt servo driving system for control, so the cutting length is easily adjustable within the adjustable range of the machine.
4:The grinding angle is fixed, ensure the grinding quality. With dust remove system for dust and hear removal. Automatic feeding grinding for circular knife. Steady compressed air blowing for cooling

Cutting dimension LxWxH	L=90-250,W=60-150,H=60-150
Feeding reel length	500~5000mm
Driving system	Servo motor drive feeding belt
Cutting system	Rotating circular knife movement and continuous tissue forward movement
Designing speed	150 cuts/min, two stacks per cut
Production speed	0-120 cuts/min, two stacks per cut ( length = 100mm)
Grinding	Pneumatic grinding, parameter can be set on the control panel
Grinding feeding	Automatic feeding grinding for circular knife
Knife holding arm height adjustment	Manually
Dust remove system	Suction ventilator for dust and hear removal of the two sides grinding wheel
Cooling system	steady compressed air blowing for cooling
Cutting length adjustment	On control panel, tolerance ±1mm
Cutting Vertical Tolerance	±1mm Vertical Tolerance
Power	12.5W
Mini air pressure requirement	0.6Mpa
Gas consumption	500L/shift
Driving	protective cover for the main driving unit
Protection	Individual motor drive, servo motor, timing belt, flat belt

Automatic Facial Tissue Production Line
Technical Parameters for Automatic Facial Tissue Production Line

FT Facial tissue making machine
Machine size(mm)	2T-10T	Air pressure(Mpa)	>0.5(user supplied)
Longitudinal cutting knife	2-10 front sets,2-10 rear sets	Voltage(Can be ordered)	380V 50Hz (3-phase)
Speed	500-1000pcs/min	Machine weight(kg)	About 3000-8500kg
power(kw)	3-11kw	Vacuum system	7.5-22KW

FC Log saw facial tissue cutting machine
Machine size(mm)	4600*1700*2500mm	Air pressure(Mpa)	0.5-0.8
Log length	500mm-5000mm	Voltage(can be ordered)	380V 50Hz
Speed	20-120cut/min	Machine weight(kg)	2500-2800
Power	13	Dia. of the blade	Φ610mm

RC300C Full Automatic Plastic Film Facial Tissue Paper Packing Machine
Machine size(mm)	3650L*6000*1850	Air pressue(Mpa)	0.5-0.6(user supplied)
Production size(mm)	(120-200)L*(90-150)W*(20-130)H	Voltage(can be order)	380V 50Hz(3-phase)
Speed(bags/min)	25-80	Machine weight(kg)	About 3000
Power(kw)	5.68	Packing material	CPP PE and so on

Main Features
1 Adopts advance control of SIEMENS' PLC programming and touch screen to set up.
2 Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
3 The driving system adopts advance variable frequency speed regulating control and drive with stepping motor, has the features of accurate control and locating compact matched movement.
4 With the automatic oil-filling circular lubricating system, the use life of the machine parts have been extended greatly.
5 With adopting static electricity removing device, the packing effect is more perfectible.
6 With the intelligent tem-controllor, the temperature adjustment is flexible.
7 It can be equipped with auto-perforating device, which is for various tear-off outside.
8 Automatically print production date and the location can be adjusted from up to down, from left to right.
Oure Certificate
Our Factory
Loading & Shipping Why Choose Us 1. We are specialized in manufacturing Automatic tissue machine for 10 years. 2. We have a whole complete service, include researching, designing, manufacturing, selling and after-sale service. To keep the best product what you want. 3. Our company located in Nanhai, Foshan city which near Guangzhou and HongKong. It's expedient to export for us. 4. 100% QC inspection and debugging before shippment. 5. 100% rest assured after-sales service. Our service
Pre-sale service
Our professional sales team provide the professional consultation and best solution for actual situation and budget. Our professional researching-designing department can design the specific specification machine what you need
After-sale service
1.We provide door to door installation, equipment debugging technical training service and so on.
2. Warranty: 1 year quality assurance.
3. Our after-sale team have a rest assured global presence service even over the warranty period for you.

---
