US$4,500.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Cylindrical Grinder Type
Surface Grinding Machine
Certification
CE, ISO 9001
Working Surface of Table
160X460mm
Grinding Wheel Dimensions
200X25X32/31.75mm
Vertical Handwheel
0.01mm/Gard
Cross Feed Handwheel
0.02/Gard
Spindle Speed
2850 Rpm-50Hz 3420rpm-60Hz
Transport Package
Non-Fumigation Plywood Case
Specification
1470x1170x2145mm, 1300kg
Production Capacity
80 Sets/Month
Product Description

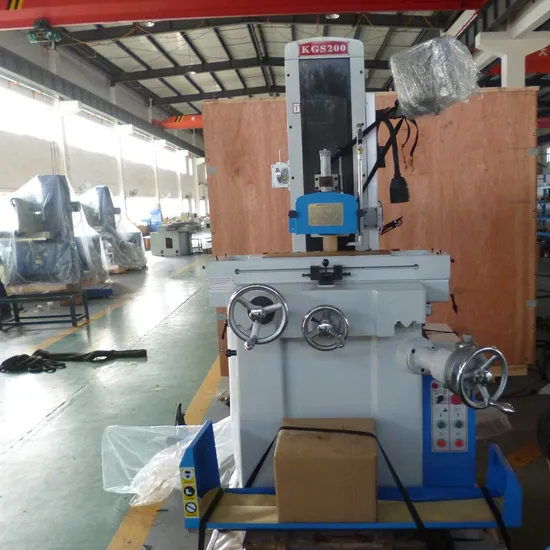

1. Picture
2. Parameters
| Parameters | Unit | KGS200 |
| Working Surface of Table | mm | 160×460 (6"×18") |
| Max.Table Travel | mm | 495 |
| Max.Cross Travel | mm | 185 |
| Distance Between Table Surface and Spindle Center | mm | 520 |
| Max.Table Load | kgs | 120 |
| T-Solt(Number×Width) | mm | 1×14 |
| Table Speed | m/min | Manual |
| Crossfeed Handwheel | 1gard | mm | 0.02 |
| 1 rev | 5 |
| Automatic Crossfeed of Saddle | mm | - |
| Power Cross Feed | 50HZ | mm/min | - |
| 60HZ | - |
| Grinding Wheel Dimensions | mm | 200×25×32/31.75 |
| Spindle Speed | 50HZ | rpm | 2850 |
| 60HZ | 3420 |
| Vertical Handwheel | 1gard | mm | 0.01 |
| 1 rev | 2 |
| Automatic Down Feed Rate | mm | - |
| Power Head Increment | mm/min | - |
| Spindle Motor | kw | 1.5 |
| Vertical Motor | w | - |
| Hydraulic Motor | kw | - |
| Dust Collection Motor | w | 550 |
| Coolant Motor | w | 90 |
| Crossfeed Motor | w | - |
| Floor Space | mm | 1900×1900 |
| Packing Dimensions | mm | 1470×1170×2145 |
| Net Weight | kgs | 1100 |
| Gross Weight | kgs | 1300 |
3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Main electrical components: SIEMENS brand.
4. Standard Accessories
| 1 | Grinding wheel | 2 | Wheel flange |
| 3 | Wheel balancing base | 4 | Wheel balancing arbor |
| 5 | Extractor | 6 | Diamond dresser |
| 7 | Leveling pad | 8 | Anchor bolt |
| 9 | Tool box with tools | 10 | Permanent magnetic chuck |
| 11 | Cooling system | 12 | Work light |
5. Feature
Table ways use hardened steel linear rails with precision balls for smooth and effortless hand feed. These reliable machines are low maintenance and easy to operate.
6. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!
7. Dellivery Picture
>>
