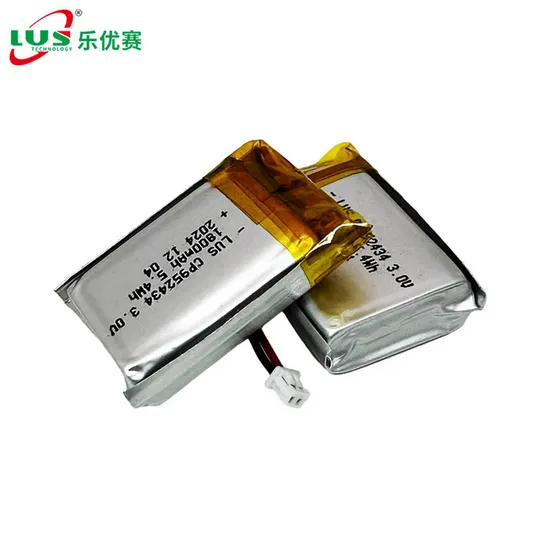

Primary Lithium Battery Cp952434 3.0 Volt Lithium Manganese Dioxide Battery

Product Description

Data Sheets Primary Lithium Battery Cp952434 3.0 Volt Lithium Manganese Dioxide Battery 1800mAh Thin Cell
CP952434 3V 1800mAh Specialised Thin Cell Lithium Battery-CP952434 primary lithium battery
CP952434 Lithium Manganese Dioxide LiMnO2 Ultra-thin Cell 3V CP952434 Battery
Li-MnO2 Battery CP952434 Lithium Pouch Type Batteries CP952434 Pouch Lithium Manganese Battery
Advantage of CP952434 Li-MnO2 Pouch Cell
High voltage response, stable during most of the lifetime of the application
Energy density up to 830Wh/L
Wide operating temperature range (-40ºC~+70ºC) suitable for the lithium pouch battery
Low self-discharge rate (less than 1% per year after 1 year of storage at +25ºC)

Name	ultra Thin battery
Model	CP952434
Voltage	3.0V
Capacity	1800mah
Dimension	9.7×26×36mm
Temperature	-40 to +70
Weight	11g
Max continuous discharge current	600mA
Max pluse discharge current	1000mA
Storage life	10 years
Terminals	Can be customized
Shipping	AIR/SEA/EXPRESS

Application Field RFID BATTERY / ID card battery / Payment system battery etc

a. Civilian field: AMR of common instruments and CMOS circuit boards

b. Various smart meters: smart electric meters, water meters, heat meters and gas meters

c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies

d. Radio alarm equipment/sensors: smoke alarms and temperature monitors

e. Remote monitoring systems: positioning devices and marine telemetry systems

f. Automotive electronics: tire pressure monitoring systems

g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.

Battery Type CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V CP903450

Thin cell Feature
Wide Operating Temperature Range
-20°C to +60°C
Special models with operating temperature -40°C to + 70°C available
Long Shelf Life
Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin Variable Design
Battery of variable dimensions can be selected to fit in the customer's design
Customize batteries and packs are available
Greater Safety
The structure of the battery offers greater safety to meet customer's requirement for special applications

---
