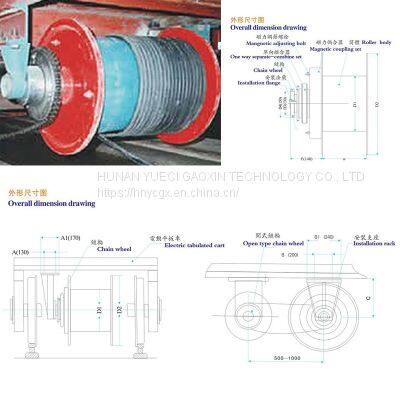

No Power Magnetic Force Couple Type Cable Reel JWD Series
This series specially used in electric tabulated cart. The power of the roller is deriving chain wheel that original from the walking sets of the installed equipments, by across these chain wheel, then transmitted to the cable reel deliver chain wheel.
After the magnet coupling set changing continuously to synchronzation, the cable got down to working. By adjusting the tightness of the magnetic coupler, the tension might be regulating randomly, so can curl automatically and release the cable. If the cable curled is too long(beyong 50m), that can add a reciprocated type cable roller in front of the cable reel, which use pure mechanism conveying set, thus might realize multi-row in sequence arrange automatically.
Special Features
1. It uses the magnetic coupling sct(touch style) as synchro difference speed set, so the reel has an relizble synchronization and magnetic coupling feature, and does not effected by working status.
2. Touch type permanence magnetic coupling set adopt separated structure, the tension of cable coiling and spooling can be adjusted conveniently.
3. Electricity gathering system adopt independent whole joining type, it is simple to maintain.
4. It adopts the installing way that called flange fracture, which is suited to curling cable range about the size with in 50m or below 10mm2
5. Please pay attention to the diameter of the zxle and wheel of the tabulated when choosing the types, in order to make open style chain wheel.
>>
