Small Household Injection Parts Machine

Product Description

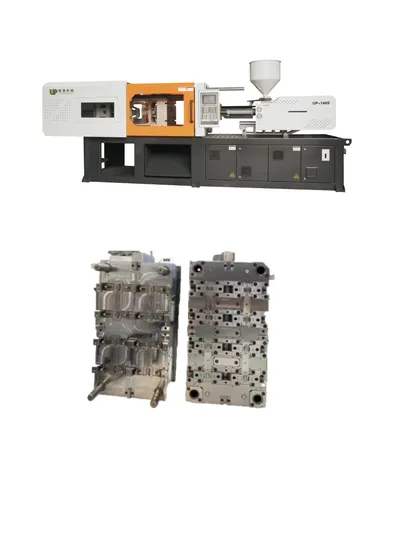

China Servo Injection Molding Machine
Introducing the latest servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. This cutting-edge machine is designed to meet the highest standards of precision and efficiency in injection molding processes.
Key Features:
Modulus of Capacitance: Ensures precise positioning, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar (Green column).
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Features code mold hole and slot size for seamless mold creation.
Ejection Mechanism: Provides ejection point position, ejector rod diameter, ejection force, and stroke for efficient mold ejection.
Mold Opening Stroke: Offers precise control over mold opening stroke and maximum opening distance for enhanced molding capabilities.
Upgrade your injection molding processes with the China Servo Injection Molding Machine from Ningbo Union Power Machinery Co., Ltd. Experience unparalleled precision and efficiency in every mold creation.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

---
