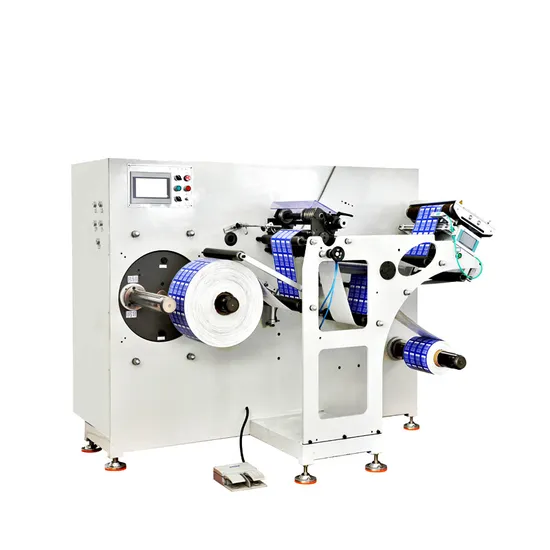

Auto Slitting and Rewinding Narrow Web Slitter Machine for Paper and Film

Product Description

Feature:
1.This slitting machine is used for narrow web slitting with max speed 400m/min.
2.It can slit both paper and Film materials. It has the function of meter counting, label counting and pre-set stopping, there are two sensors to do the web-guiding.
3.This machine has very compact structure, short web path ,high efficient, accurate slitting and very easy to operate.
4.It can be upgraded to 520mm slitting width with magnetic clutch ,advanced patent design of coreless and half inch turret rewinder for small rolls
Product Made from Machine:

Teachnical Specifications:

Max Web Width	320 mm
Max Unwinding Dia	650 mm
Max Rewinding Dia	500 mm
Max slitting Speed	400 m/min
Slitting accuracy	±0.10 mm
Min Slitting Width	17 mm can be refitted to 14mm
Blades quanitity	7 sets
Voltage	1P 220V 50HZ
Machine size	2000*1250*1450mm
Weight	1050kg

Please note the machine speed may be limit by other units.
Detail Configuration:

Main Electrical Part	Quantity
PLC	1pc
Touch Screen	1pc
Web Guiding Sensor	2pcs
Unwinder servo control	1pc
Rewinder Servo control	1pc
Counter Sensor	1pc

Machine Detailed Pic for Reference:
About us
Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:

---
