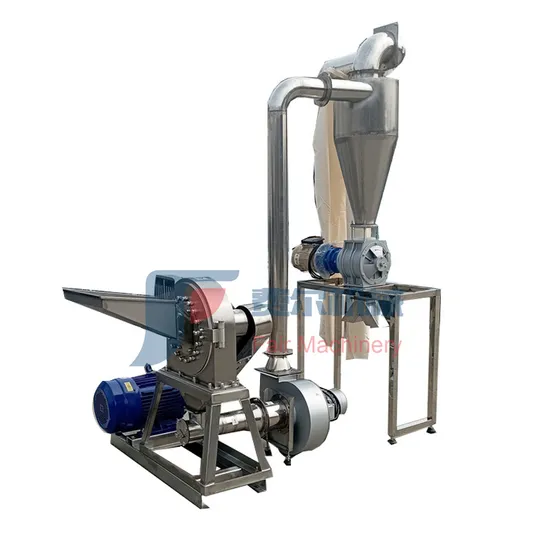

White Sugar Seasoning Tooth Disc Crusher Large 304 Stainless Steel Chemical Raw Material Powder Mill Ultrafine Dust-Free

Product Description

Product Description
The tooth type grinder is suitable for food and grain and other industries, and has a wide range of uses. It utilizes the high-speed relative movement between the movable toothed plate and the fixed toothed plate, so that the crushed objects are pulverized by the comprehensive action of tooth impact, friction and impact between objects. The structure is simple, sturdy, stable in operation and good in crushing effect. The crushed material can be directly discharged from the grinding chamber of the main machine, and the particle size materialcan be obtained by replacing mesh screens with different apertures.
Working principle:
1.The high-speed relative motion between moving fluted disc make the material in the chamber cut, crushed, and impacted under high-strength friction, then the fine powder comes out through a screening sieve. Different sizes of powder could be made by changing the various size of the sieve screen.
2.It utilizes the high-speed relative motion between the moving tooth set and regular tooth set, which makes the material crushed through concussion, rub and crush between the materials. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
Application
Chemicals, pharmaceutical, food, spices, resin powder and other products.roots, stems, corn, rice, pepper, pepper, oil and wheat, soybean, soybean meal, garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic slices, sugar, saccharin, shrimp, pumpkin powder, seasoning ect.
Product Parameters

Model	Capacity (kg/h)	Rotary speed of main axis(r/min)	Working noise(DB)	Finesess of powder(mesh)	Motor power (KW)	Fan Power (KW)	Overall size(mm)	Weig(kg)
180B	10-30	4200	<85	20-120	2.2	0.18	890*500 *1260	120
250B	50-250	4200	<85	20-120	5.5	0.75	1100*650 *1500	250
320B	80-300	4200	<85	20-120	7.5	0.75	1250*1070 *1300	300
420B	160-500	3200	<85	20-120	11	1.1	1350*700 *1700	400
520B	300-800	3200	<85	20-120	18	1.5	1500*1000*1750	700
620B	500-1000	2800	<85	20-120	22	2.2	1500*1000*2700	950

Product Details
Our Advantages
Feature of the machine:
1.This machine owns good adaptability, and is capable of grinding, sorghum, maize straw, peanuts, etc.It can also be used for potato beating. Maintenance is convenient.
2.It is easy to operate, no need of fixed foundation, facilitates flow homework.
3. it has high efficiency,less consumption and little noise.
4. Smooth and steady operation,nice grinding and milling effect,
5. less dust emission during operation,
6.Changeable filter screen helps you get a specific size of the final powder.
7 Machine materials adopt SUS304 or 316L with good quality to meet GMP standards.
8.To meet customer needs, this machine supports several customizations
Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients'factory.
3.Inspect the machine before leaving the factory.
After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4.Operation/ Service/ Maintenance Manual: Provided In English.

Packaging & Shipping

Company Profile
FAQ
Q1: What should I do if we do not know how to operate the machine when we receive it?
A1.: we will shoot a video to tell you how to operate the machine, and we are willing to solve all problems you put forward.
Q2:What is the delivery time of your machine?
A2:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q3;Can the machine be customized as our need, such as put on our logo?
A3:Surely our machine can be customized as your need, Put on your logo is also available.
Q4.May I purchase one sample, or place mix order?
A4:Yes, of course, MOQ is 1 pc, and you also can mix different models as you wish.
Q5: what payment way?
A5: T/T ,L/C , etc.
My friend, in order to suggest a suitable model to you, could you tell me the following questions?
a.What's the processing material?
b.How's the material's density(g/cm3) and moisture(%)?
c.What's the material's feeding size(mesh) and output size(mesh) you need?
d.What's the capacity per hour do you need?(kg/h)
e.What's the voltage in your area?
Once we get your answers, we can provide you with the best quotation immediately.
Remarks: The price will depend on different models. Reply message you will get a 3-5% discount price.

---
