100-700tpd Cement Production Line with Kiln/Ball Mill and Other Machine

Product Description

Complete Cement Plants
150tpd cement production line factory, 200tpd cement line factory, 300tpd cement production line factory, 600tpd cement production line.
We design and manufacture devices for new type dry method cement production line, which capacity from 300t/d to 4000t/d clinker. And we can also assist the client in transacting purchaser`s credit or Chinese government`s credit while exporting.

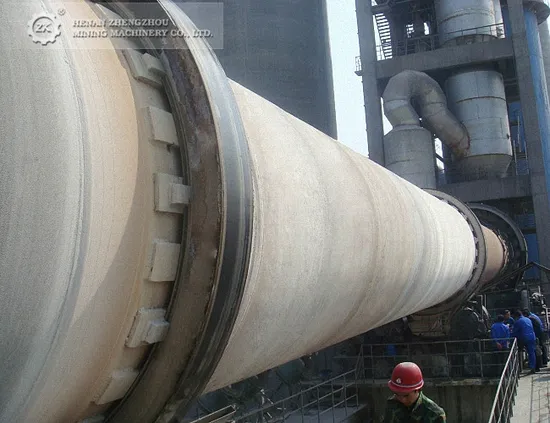

Rotary kiln is the main equipment of cement production line for sintering cemnet clinker. The rotary kilns produced by our company can be divided into dry process and wet process. They can also be used for chemical industry, metallurgy industry and etc. Throught technical renovations, the rotary kiln sintering system equipment made by our company has adopted high measuring precession plunger pump, variable speed adjusted valve, contact graphite block air seal and other national advanced technologies.
In order to raise up automation degree, indurstrial TV has been used at the kiln head for monitoring of kiln, analog fluorescent screen has been used for display of process flow; Infrared scanning system has been adopted for sintering zone to directly reflect the burning conditions on the computer. With the use of these new technologies, it is directly in vision, convienent in operation and reliable in use. Therefore, the rmalcondition can be raised. Compared to been raised 3-5% up, production has been increased 5-10% and heat consumption has been reduced 15% down.
Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. Metallurgy chemical kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; Baking high-alumina mine in the refractory material factory; Baking chamotte and alumina in the aluminium factory and baking chrome ore and chrome powder in the chemical plant.
Lime kiln is used for baking active lime and dolomite in the steel factory and ferroalloy factory.

cement rotary kiln
type(mm)	indiclination(%)	rotation speed(r/min)	input tempreture(ºC)	motor power(kw)	outpur(t/h)	weight(t)
GZΦ800×8000	5	7.5	≤700	4-6	0.8-2.0	3.5
GZΦ1000×10000	5	6.19	≤700	5.5-7.5	1.0-3.5	5.6
GZΦ1200×10000	5	5.3	≤700	11-13	1.8-5	14.04
GZΦ1500×12000	5	4.5	≤800	13-15	3.3-7.5	17.76
GZΦ1800×14000	5	3.3	≤800	18.5	5-9	29
GZΦ2200×120000	5	3	≤700	22	6-12	33
GZΦ2400×18000	5	2.5	≤800	30	10-15	53.3
