Basic Info.
Automatic Grade
Automatic
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Core Components
PLC, Motor, Pressure Vessel, Pump
Applicable Industries
Manufacturing Plant
Showroom Location
United States, Algeria, Malaysia
Dimension(L*W*H)
4500*1700*2100mm
Operating Pressure
0.6MPa
Advantage
Safe and High Efficiency
Heating Method
Heating Tube or Steam
Transport Package
Fixed Into Container and Proper Treatment
Specification
Long Service Life
Production Capacity
20 Set/Sets Per Month
Product Description
Company Profile

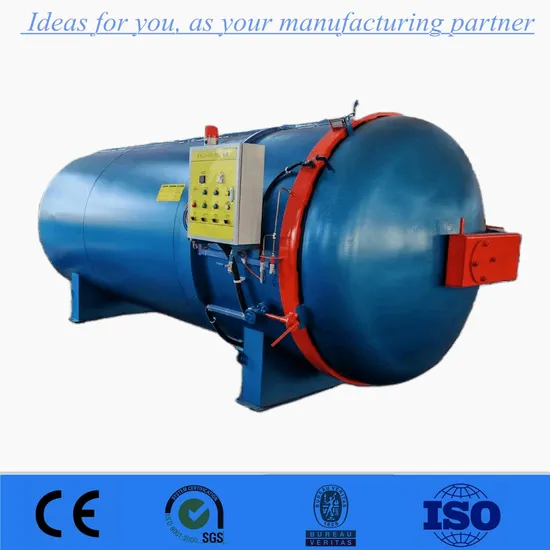

Product Description Product Application The first part of the rubber strips vulcanizing tank overviewRubber Vulcanizing Oven Hose Vulcanization Autoclave Tank is mainly used for curing of rubber products such as cable, rubber shoes, rubber hose, rubber roller, adhesive tape, rubber ball, rubber lining, rubber vulcanization, reclaimed rubber desulphurization and SBR thermoplastic resin; Anti-corrosion, anti-corrosion, anti-deformation impregnation treatment, food and traditional Chinese medicine to eliminate (kill) bacteria, yarn, mane, socks heat stereotypes, sacrificial angle and bone high-pressure modification, degreasing, hydrolysis of various feathers, aluminum products oxidation . Also used for carbon materials, asbestos friction materials, gypsum and its products, and other materials autoclave, cooking, dipping, drying. The second part of the design concept of the electric heating steaming rubber strips vulcanization cooking tank. 1, Electric heating steaming rubber strips vulcanization cooking tank human nature! (Everywhere ingenuity, reflecting the people-oriented design)
2, Rubber strips vulcanization tank security! (In accordance with: GB150-2011 "pressure vessel manufacturing standards", ISO9001: 2008 quality certification system, HACCP food safety certification design, manufacture)
3, Rubber strips cooking tank reliable! (Selection of world-renowned brand parts,)
4, Electric heating rubber vulcanization tank energy saving! (Temperature loss, electricity, compressed air, time consumption of four reasonable, with optimization)
5, Beautiful appearance, novel, compact, simple! The third part of the rubber strips cooking tank design, manufacturing basis Products in strict accordance with the "capacity regulations" and GB150-98, GB151-98 national standard manufacturing acceptance, warranty information and technical documentation integrity. Main Features Technical parameters of vulcanization can Project Description Curing tank diameter / tube length / full capacity 1500 mm / 3000mm / 5.3m3 Design pressure 1.0Mpa The maximum working pressure is 0.8Mpa The maximum operating temperature of 180 ºC Total installed power of about 64KW Power supply voltage 380V Pot body material Q345 Wall thickness of the tank body 12mm Volume 4200 * 1700 * 2000 Weight of about 3 tons Section 6 Curing tank ancillary facilities (user-owned) Content model Air compressor exhalation: 0.6m3 / min Section 7: Characteristics of vulcanization tank electrical automatic control, electronic, mechanical double over-voltage protection. mechanical safety chain. electronic temperature deviation correction. electronic over-temperature automatic protection. temperature anomaly alarm. electrical contact pressure control automatic steam hammer silencer. temperature difference between the points of the pot (heat distribution) ± 0.5 ºC. Intelligent temperature control, temperature control accuracy within ± 0.5 ºC. Rubber products, such as rubber, vulcanization, reclaimed rubber desulfurization, SBR thermoplastic plastic; bamboo carbonization degreasing, rubber, rubber, rubber, rubber, Wood fire, moth, anti-corrosion, anti-deformation impregnation, food and proprietary Chinese medicine off (kill) bacteria. Certifications Detailed Images Machine Parts Name: Electronic Control System
Brand: Simmens
Original: Germany
All our machine electronics adopts international famous brand, so the machine control is reliable, and the machine running is stable. And all the wires are well arrayed for easy connect and maintenance. Main Features Name: Electronics Brand: CHNTOriginal: France or China All our machine electronics adopts international famous brand, so the machine control is reliable, and the machine running is stable. And all the wires are well arrayed for easy connect and maintenance. Machine Parts Name: Can body MaterialBrand: EvertechOriginal: China The can body adopts Q345 material. This kind material is specially for high pressure vessel making . to ensure the can machine is safe for use. Main Features Name: Loading RackBrand: EvertechOriginal: China The device is used for feeding raw material into the tank. The wheels are made by carbon steel, so it can stand the high temperature in the tank and have long service life.
Our Service Pre-Sales Service * Inquiry and consulting support.
* Sample testing support, and proposal.
* Test macine before delivery.
After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging |
Size | 4200(L) * 1700 (W) * 2000 (H) |
Weight | 3T |
Packaging Details | the rubber vulcanization tank is big size, so the machine small model is directly loaded into 20 foot container or into a fumigation free wooden box. |
Packaging |
Size | 8200 (L) * 2200(W) * 2400 (H)mm |
Weight | 5T(for 1500x6000mm) |
Packaging Details | the rubber vulcanization cooking tank is big size, so the machine big model is directly loaded into 40 foot container. And proper treated(for anti rust and dust for some parts) and well fixed in the container. |
