Digital Collimator for Laser Products F550CCD-T1

Product Description

Product Description
This instrument is dedicated to test and adjust the horizontal accuracy of the laser levels. The instrument and be used for professional testing and calibration of the accurracy of the autolevel i angle,autolevel with laser pointing,theodolite and total station with laser pointing,Coaxial precision of the reticles.

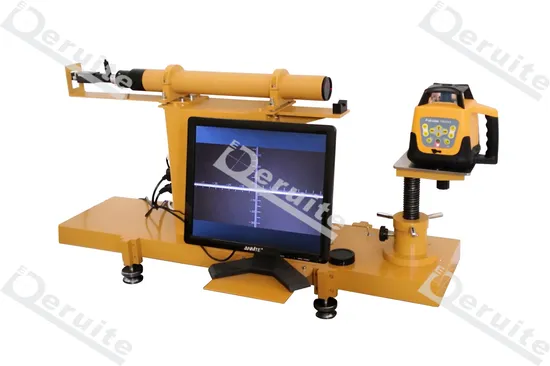

The instrument has a collimator tube with industry CCD camera,it is equipted with dedicated industrial lens and laser filter. These fetures along with the all metal body make it form a complete and perfect inspection system for the laser levels and other instuments.
PARRALLE LIGHT TUBE:

FOCUS(Nominal value )F=550mm

Effective aperture:57MM

RESOLUTION:3″

MIN. VALUE OF THE RETICLE:30″

ADJUSTABLE RANGE OF THE TUBE: HORIZONTAL AXIS≥20′VERTICAL AXIS≥20′

DIGITAL EYEPIECE SYSTEM:
CCD Camera:Industrial camera
CCD bin size: Light - sensitive chip 1/3inch
Total pixels: 2million (optional)
Data cable: BNC CABLE
FOCUS:45mm
DIGITAL CCD RESOLUTION:≤0.01mm
LENS TYPE:INDUSTRIAL
LIGHT SOURCE: LED PIONT LIGHT
CCD POWER ADAPTOR: 6V
LED POWER:3.5v(Light intensity can be fine-tuned)
This instrument is dedicated to test and adjust the horizontal accuracy of the laser levels. The instrument and be used for professional testing and calibration of the accurracy of the autolevel i angle,autolevel with laser pointing,theodolite and total station with laser pointing,Coaxial precision of the reticles.
The instrument has a collimator tube with industry CCD camera,it is equipted with dedicated industrial lens and laser filter. These fetures along with the all metal body make it form a complete and perfect inspection system for the laser levels and other instuments.

---
