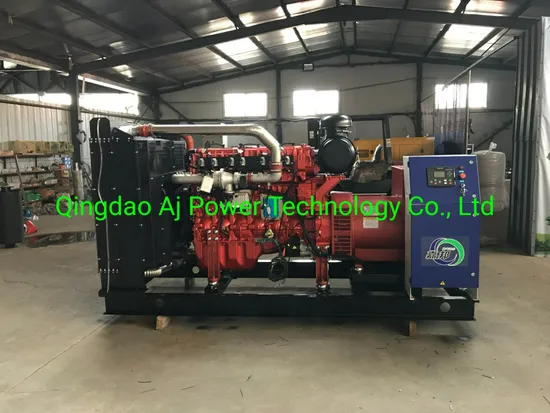

240kw 300kVA Natural Gas Generator

Product Description

Qingdao AJ Power Technology Co., Ltd can be traced back as early as 2004 and is composed of a number of engine and generator companies. It is mainly engaged in the research and development and production of diesel engines, gas engines, diesel generator sets and gas generator sets. The factory covers an area of 60000 square meters, including the production department, technical department, and international trade department. More than 50 employees. The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety system certification, Saudi SASO certification, EU CE certification. Diesel generator sets range from 6.5KW to 4000KW. The units are selected from well-known brand diesel engines such as MTU, Ricardo, Yangdong and other famous brands such as Stamford, Marathon and Farrand. Gas generator sets range from 2kW to 4500kW, and are divided into natural gas generator sets, biogas generator sets, liquefied petroleum gas generator sets and biomass gas generator sets. The company has self-support import and export rights, and the products are exported to foreign countries, especially the Southeast Asia, Middle East and Central Asian countries along the Belt and Road. At present, the company has established long-term and stable cooperative relations with more than 20 countries including Asia, Africa and America.

Model		AJW-240
Rated power (kW/KVA)		240/300
Rated voltage(V)		Three-phase 220/380
Frequency(Hz)		50
Rated current (A)		432
Size (mm)		2750*950*1650
Weight (kg)		1850
Engine	Brand	YUCHAI
	Model	YC6K400N-D30
	Type	Four-stroke, Water-cooling ,Inline 6 cylinders
	Rated Power(kW)	294
	Rated Speed(rpm)	1500
	Cylinder No.	6
	Bore*Stroke(mm)	129×165
	Cooling Method	Water-cooling
	Oil Consumption(g/KWH)	≤1
	Consumption(Nm³/Kw*h)	≤0.3
	Starting method	24V DC
Alternator	Brand	PUDELI
	Model	PDL-240
	Rated Power(kW/KVA)	2440/300
	Efficiency	92.5%
	Voltage Regulation	<=±1
	Excitation mode	Brushless, Self Excitation
	Insulation Class	H
Control System	Model	DES 6020
	Working Voltage	DC8.0V - DC35.0V
	Overall Dimensions	266 mm x 182 mm x 45 mm
	Panel Cutout	214mm x 160mm
	Working Condition	Temperature:(-25~+70)°C Humidity:(20~93)%
	Weight	0.95kg

---
