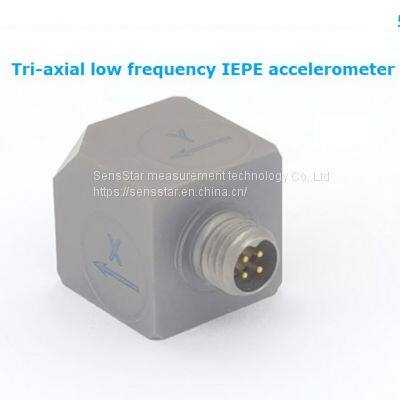

V560A Tri-axial low frequency accelerometer,IEPE vibration sensor

Product Details

Product Description

Product Description
Model 560A is an IEPE triaxial accelerometer designed for small size applications. The accelerometer uses shear piezo electronical element which provides a wide operating frequency range. The IEPE sensor combines outstanding crystals and low noise integral microelectronics to achieve very low sensitivity variation over the operating temperature range, compared to other sensing element designs. The shear element technology also ensures high immunity to base strain errors. The accelerometer uses a welded titanium construction for low mass and a light weight 4 pin connector, or integral cable assembly for lower mass and wider frequency operation. Excellent frequency response, both amplitude and phase, provide the user with a triaxial accelerometer ideally suited for structural and component testing, drop tests and general laboratory vibration work. The small cube size of this accelerometer enables the test engineer or technician to measure the accelerations of three orthogonal axes of vibration simultaneously on lightweight structures. All variations provide reliable measurements and long-term stability.
Feature / Application
•Low frequency response •Aircraft testing
•Flexible cable exit •Shock testing
•Adhesive or screw mounting •Road testing
•Hermetic sealed •Modal analysis
•Annular shear mode
•Tri-axial measurement
•Mounting ground isolated
Product specification

Range(g)	100
Velocity Range(in/s)	0
Sensitivity( ±10%)	50
Frequency Range(Hz)	0.5 - 8000
Weight(g)	12.6
Shock Limit	7000
Operation Temp(°C)	-55 to 125
Output Type	IEPE
Axial	Tri-axial
Mounting	Adhesive/Stud
Temp.Signal	N/A
Sensor Type	IEPE
Sens. Unit	mV/g
Excitation	Constant current: 2~10mA
Mating cable	13

---
