Conventional Centerless Grinding Machine for Max Dia 150 Shafts, Bearings, Rings

Product Description

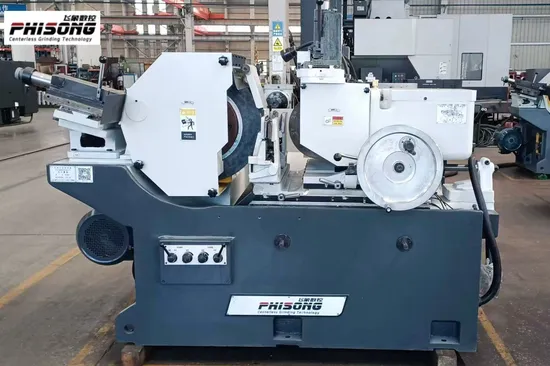

Precise Centerless Grinder Model M1083B
1. Salient features:
1.1 For Grinding wheel and Regulating wheel

1.1.2.The grinding wheel's outer diameter designed as 600mm, with strong
cutting force.
1.1.3.The grinding wheel designed in cantilever type, and its spindle adopted
five-plate long bearing bushed static-hydrodynamical oil film bearing.
1.1.4.The roller guide regulating wheel feed slide moves quickly and accurately,
and with long service life.
1.2.Electric.
1.2.1.AC frequency converter is used for regulating wheel speed control.
1.2.2.Hydraulic transmission & stepless speed regulation are adopted on
regulating wheel & grinding wheel dresser.

1.3. Machine body and design
1.3.1.The machine equipped with plunge-in unit.
1.3.2. Iron casting with high rigidity, natural aging.
2. Technical Data:

In-feed Grinding	Dia.	10-150mm
	Length	190mm
Through grinding	Dia.	10-150mm
GW SPEC. (O.D.*width*I.D.)		P600*200*305mm
RW SPEC.(O.D.*width*I.D.)		PDA350*200*203mm
GW Speed		1115r/min
RW Speed (stepless)		10-200r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	0°~ +3°
GW min feeding amount		0.01mm
GW dresser min feeding amount		0.015mm
Height from center line of GW & RW to work rest		285mm
GW Motor		22kw
RW Motor		3kw
Power Supply		3N 50HZ 380V
Dimension(L*W*H)		2650*1500*1800mm
Machine Weight		About 7000kg
Accuracy (standard bars D10mm, L50mm)	Roundness	0.002mm
	Cylindricity	0.003mm
	Roughness	Ra.0.32μm

3. Main Accessories

Name	QTY	Unit	Brand
Grinding wheel motor	1	pc	Wannan
Regulating wheel motor	1	pc	Wannan
Low-voltage apparatus	1	set	Chint
Converter for RW	1	set	Huichuan

---
