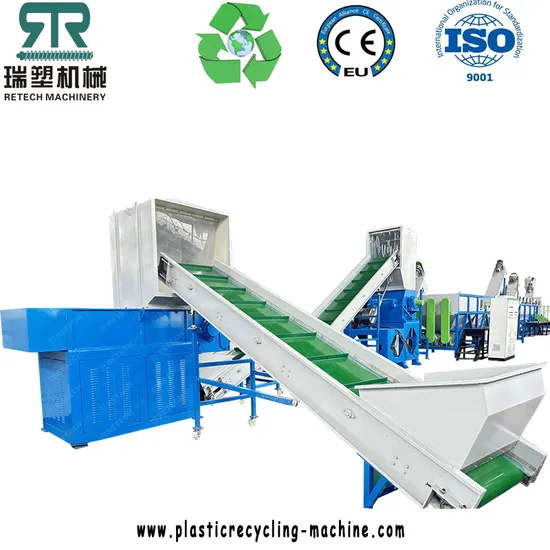

Plastic PP PE Bottle Shredding Crushing Washing Scrap HDPE Bottle Flakes Cleaning Recycling Line

Product Description

Plastic PP HDPE Bottle Shredding Crushing Washing Scrap HDPE Bottle Flakes Cleaning Recycling Line
Product Description
1. The material is a big range, including HDPE bottles, like the milk bottles, grease bottles, shampoo bottles, PP barrels, PP bottles, plastic pipes, plastic basket, car battery, and the shell of home appliance etc…
2. he main parts of rigid material washing recycling line includes the crushing, hot washing, cold washing, friction washer, drying system and label separator.
3. The capacity of the rigid material washing recycling line is from 300kg/h to 3000kg/h.
4. There crusher is to crush the rigid material into small pieces with size from 10mm to 15mm depending on customers' need.
5. Cold water sinking swimming tank can wash the common dirties, like the soil, sand, earth, stone, glass out.
6. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.
7. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.
8. By dehydrator and drying system, the final products plastic flakes moisture level can be lower than 1%.
9. By zigzag air label separator, the labels on the bottles can be separated out.
Detailed Photos
Belt conveyer→mechanical label separator→manual sorting→metal detector→belt conveyer→wet crusher→screw conveyer→floating washer→screw conveyer→hot washer→screw conveyer→high speed friction washer→screw conveyer→floating washer→screw conveyer→vertical dewatering machine→drying system→zigzag label separator→storage silo---operating panel.

Product Parameters

No.	Name	Motor Power	Dimension	Weight	Necessity
1	Belt conveyer	1.5~2.2kw	4000*700*3000mm	450kg	Necessary
2	Mechanical label separator	18.5~22kw	3200*1200*2500mm	4000kg	Necessary
3	Manual sorting	1.5~3.7kw	6000*1000*1200mm	600kg	Optional
4	Metal detector	0.4kw	2000*1300*1600mm	350kg	Optional
5	Belt conveyer	1.5~2.2kw	4000*700*3000mm	450kg	Necessary
6	Wet crusher	22~90kw	1700*1600*3200mm	3500kg	Necessary
7	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
8	Cold rinsing washer	3~5.5kw	5500*1900*2200mm	2300kg	Necessary
9	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
10	Hot washer	3~7.5kw	1800*1800*2100mm	2500kg	Necessary
11	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
12	High speed friction washer	22kw~37kw	3000*900*1700mm	2700kg	Optional
13	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
14	Cold rinsing washer	3~5.5kw	5500*1900*2200mm	2300kg	Necessary
15	Screw conveyer	2.2~3.7kw	3300*450*2700mm	400kg	Necessary
16	Vertical dewatering machine	45~55kw/	1800*1800*2000mm	2200kg	Alternative
17	Drying system	22kw~30kw	3000*2200*1800mm	420kg	Optional
18	Air label separator	3kw~7.5kw	1800*1000*3600	900kg	Optional
19	Storage silo	---	1600*1600*3800mm	380kg	Necessary
20	Electric panel	Customized	3000*600*1500mm	170kg	Necessary
