8" X 8" Greaseable Rear Ground Rollers with Axles

Product Description

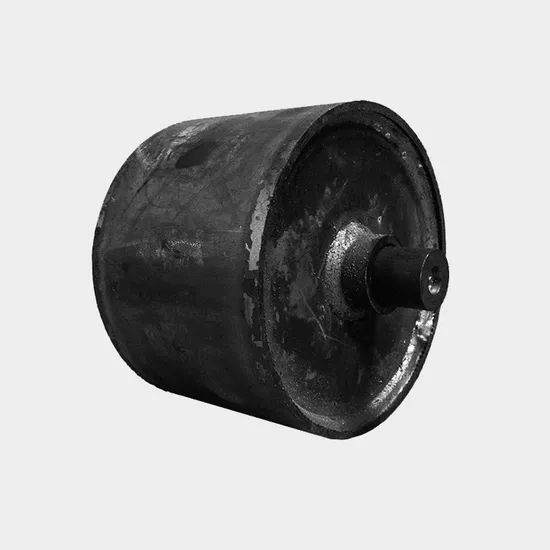

8" X 8" Greaseable Rear Ground Rollers with Axles
Xiangtan superstar casters Co., Ltd produce "Super Star" Ground rollers and ground roller with brackets.
1. They are manufactured from schedule 40 pipe with strong steel tubing hub.
2. End plates are 1/4" thick and fully welded.
3. The carbon steel axle is drilled, cross-drilled and includes a recessed zerk fitting in each end.
4. Bogey Wheels can also be purchased with mounting brackets already welded in place, or a Polyurethane Tread Bonded to the outside for street protection.
5. Different type side brackets are avaialble: Rectangle brackets, Trapezidal brackets, Heterogeneous shape brackets.etc.
6. TYPICAL USES: Roll-off containers
Heavy Duty Ground rollers Package:
40 or 50 pcs bogie rollers /crate.
Iron crate dimensions: 1120*750*920mm; 1120*900*920mm; 1130*970*920mm,etc.
20pcs--24pcs crates/ 20' container
Heavy duty ground roller and side plates size:

Bogey Wheel with bracket Specifications				Bogey Wheel Part Number
Roller Diameter (inches)	Roller Length (inches)	Axle Diameter (inches)	Axle Length (inches)	Roller+ Axle
6	12	1.5	15	BR6X12WB
65/8	6	1.5	8.5	BR6.625X6WB
6 5/8	9	1.5	11.5	BR6.625X9WB
6 5/8	12	1.5	15	BR6.625 X 12WB
8 5/8	8	1.5	10.50	BR8.625 X 8WB
85/8	10	1.5	12.50	BR8.625X10WB
10 3/4	8	1.5	10.50	BR10.75 X 8WB
8	10	1.44	12.50	BR8 X 10WB
8	8	1.44	10.50	BR8X8WB
Many other sizes available

Delivery time:
30 days after receiving the deposit.
Our Services
It's honor to do business relatiionship with you!
Since 1991,we build our factory,and have richful experence about export our goods.
We will do our best to do:
1.quote the reasonable price!
2.offer our best quality products!
3.offer our best services!
For more goods information,Please check our website: lela28.en.made-in-china.com

Thank you and best regards,
Xiangtan Superstar Casters Co., Ltd

---
