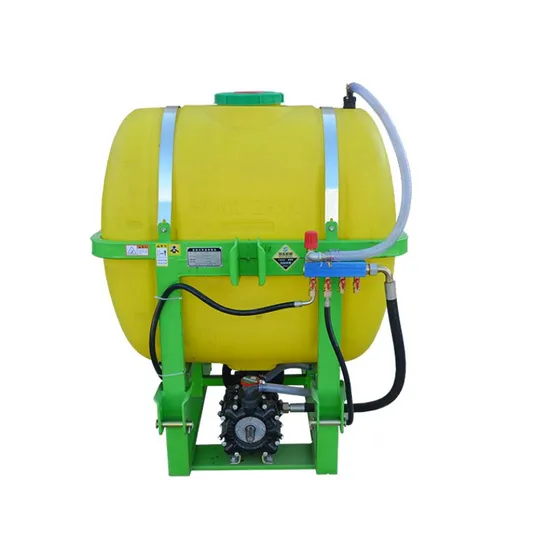

Agricultural Spray Machine Farm Orchard Tractor Pesticide Boom Sprayer Farm Spraying Machine

US$460.00
1-9 Pieces
US$440.00
10-19 Pieces
US$420.00
20+ Pieces

Basic Info.

Model NO.
3WFX-400
After-sales Service
Yes
Warranty
1 Years
Installation
Tractor Mounted
Liquid Contained
Pesticide
Spraying Shape
Mist
Volume
400L
Power Supply
Tractor
Technics
Blow Moulding
Material
PE
Type
Aligning Sprayer
Item
Farm Spraying Machine
Structure
Mounted Type
Dimension (mm)
1100*1200*1450
Max Capacity (L)
400
Spray Rod Length (M)
12
Matched Power (HP)
40HP
Pump
Diaphragm Pump
Working Pressure (MPa)
0.4-0.8
Rated Flow(L/Min)
80-100
Fan Dimension (mm)
790
Working Rate (Area/H)
20
Customized
Accepted
Transport Package
Standard Package for Export
Specification
Customized
Trademark
Harvester
Origin
China
HS Code
84244900
Production Capacity
5000PCS/Month

Product Description

Product Description
The garden sprayer is also called air blast sprayer, it is a large agricultural machine that is suitable for the application of medicine in large orchards. It has the advantages of good spray quality, less drug use, less water use, and high production efficiency. Moreover, it does not rely only on the pressure of the liquid pump to atomize the liquid medicine, but relies on the strong air flow generated by the fan to blow the droplets to all parts of the fruit tree. The high-speed airflow of the fan helps mist droplets penetrate the dense branches and leaves of the fruit tree, causing the leaves to flip, improving the adhesion rate of the liquid and not damaging the branches or fruits of the fruit tree.
Product Parameters

Model Structure Dimension
(MM)		 Max Capacity
(L)		 Matched Power
(HP)		 Horizontal Range
(MM)		 Working Pressure
(Mpa)		 Rated Flow
(L/Min)		 Fan Dimension
(MM)		 Working Rate
(Area/H)
3WFX-400 Mounted Type 1100*1200*1450 400 ≥40 12000 0.4-0.8 80-100 790 20
3WFX-500 Mounted Type 1190*1150*1420 500 ≥40 14000 0.4-0.8 80-100 790 20
Sx-500 Mounted Type 1350*1270*1350 500 ≥40 14000 0.4-0.8 32-48 790 20
