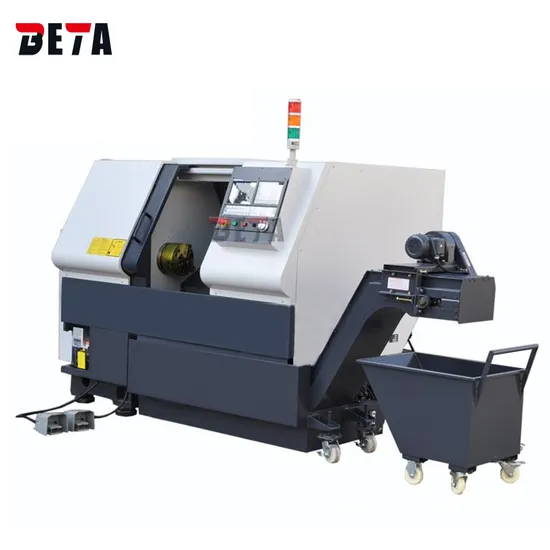

Bt25cy Siemens 808d CNC Controller Slant Bed CNC Lathe Machine

Product Description

BT25CY Siemens 808D CNC Controller Slant Bed CNC Lathe Machine
Standard accessories:
FANUC CNC controller (with C axis)
FANUC servo motors for X/Y/Z axis
Servo main motor
Live turret motor
12-station live turret (with Y axis)
Living head 90°x 1 pc
Living head 0°x 1 pc
Inner hole tool holder x 2 pcs
Outer circle tool holder x 2 pcs
End face tool holder x 1 pcs
Taiwan hollow hydraulic 3-jaw chuck
Hydraulic tailstock
Taiwan HIWIN linear guides ways and ball screws
Japan SUNTER hydraulic direct clamp
Lubrication and coolant system
Air condition for electrical cabinet
SIEMENS/SCHNEIDER main electric elements
Automatic bar feeder
Full cover
Auto chip conveyor system
Working light
Tool box
Features:
1.The machine adopts CNC system with function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2.Flat bed with slant slide structure, with high rigidity and fluent chip removal.
3.X and Z axis adopt precision linear guides with no backlash to result high rigidity and accuracy.
4.The spindle component is of high rigidity construction to provide variable speed to realize constant linear speed cutting and high speed cutting.
5.Automatic centralized lubrication with full sufficiency and reliability.
6.Full protection design, beautiful appearance and convenient operation and maintenance.

Model	Unit	BT25CY
Max. swing over bed	mm	Ф500
Max. Processing diameter	mm	Ф260
Max. Turning length	mm	Ф220
Spindle bore	mm	Ф62
Spindle nose	mm	Ф170 No taper
Spindle speed	rpm	3000
Max. travel of Axis X	mm	180
Max. travel of Axis Y	mm	±30
Max. travel of Axis Z	mm	450
Rapid feed for Axis X	m/min	15
Rapid feed for Axis Y	m/min	5
Rapid feed for Axis Z	m/min	20
Tool post stations	-	12T live turret (with Y-axis)
Live tool servo motor power	kw	2.4
Live tool Max. speed	rpm	2000
Outside dia. of cutting tool shank	mm	20x20
Max. inner dia. of cutting tool shank	mm	Ф25
External diameter	mm	Ф63
Max. travel of tailstock sleeve	mm	115
Taper of tailstock sleeve	-	M.T. NO 4
Power of main motor	kw	7.5/11
Bed structure	-	30° slant slide
Chuck dia.	inch	8"
Overall dimensions (LxWxH)	mm	2000x1700x1880
Net weight	kg	3800

---
