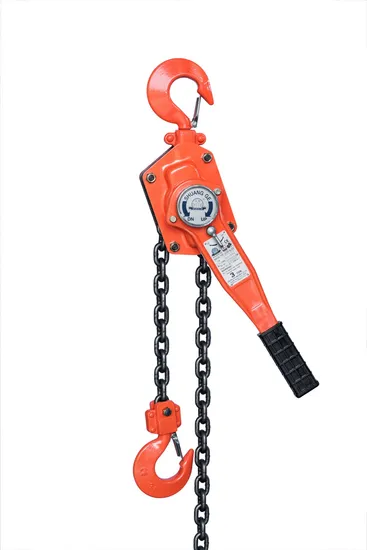

Hsh-D 3 Ton 1.5 M Lever Block with G80 Load Chain

Product Description

Capacity: 0.25T-9T
Grade 80 load chain-wafios; Safe factor 4: 1.
More than 3 rounds inspections before export out.
Excellent quality, top in China, always the leader.
Largestand best chain machine produce group in China, which imported from Wafios Germany and Italy.
Excellent after-sale serve, market agent support and protection.
Sample order and trail order are acceptable.
AcceptOEM, more than 20 years OEM experience for world brand company.

Model	Capacity (t)	Standard lift(m)	Running test load(T)	Headroom (mm)	Load chain		Effort required to lift max load(N)	Main Dimensions(mm)					Packing measurements (cm)	Extra weight per meter of extra lift(kg)	Lenghth of leverhandle (mm)	Net weight (kg)
					Columns	Dia+Pitch (mm)		A	B	C	D	E
HSH-D0.5	0.5	1.5	0.75	260	1	5	340	105	78	95	35	28	35.5x9.5x11.5	0.52	300	4
HSH-D0.75	0.75	1.5	1.125	325	1	6	140	148	90	136	35	29	37x13x17	0.8	280	7
HSH-D1	1	1.5	1.5	340	1	6	250	148	90	136	40	34	37x13x17	0.8	280	7.2
HSH-D1.5	1.5	1.5	2.25	380	1	8	220	172	98	160	47	38	51x14x19	1.4	410	11
HSH-D3	3	1.5	4.5	480	1	10	320	200	115	180	54	44	54x19x22	2.2	410	21
HSH-D6	6	1.5	7.5	620	2	10	340	200	115	235	62	52	54x19x22	4.4	410	31
HSH-D9	9	1.5	11.25	700	3	10	360	200	115	340	85	56	55x29x22	6.6	410	47

---
