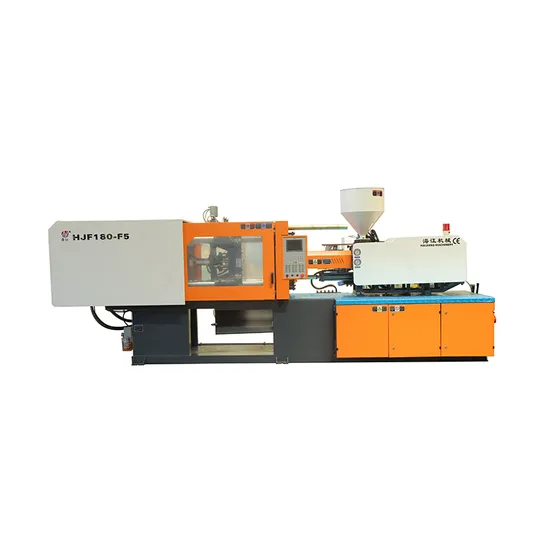

Injection Molding Machine for Pet Preform for Bottle Making

Product Description

Standard Type hydraulic high speed PET PP PE horizontal plastic Injection Molding Machine
Clamping Force: 40T
Injection Quantity: 58g-75g

SPECIFICATION		HJF240
Screw Type		A	B	C
Screw Diameter	Mm	50	55	60
Screw L/D Ration	L/D	22.2	20	18.2
Shot Size(Theoretical)	cm3	508	593	706
Injection Weight(PS)	g	462	534	642
Injection Rate	g/s	148	179	202
Injection Pressure	MPa	180	160.8	128
Screw Speed	rpm	0~180
Clamping Force	KN	2400
Opening stroke	mm	490
Space Between Tie Bars	mm	530*510
Max.Mold Height	mm	530
Min.Mold Height	mm	200
Ejector Stroke	mm	165
Ejector Tonnage	KN	70
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	18.5
Heater power	KW	11.65
Machine Dimension(L*W*H)	M	5.4*1.5*2
Machine weight	T	7
Oil Tank Capacity	L	340

Main configuration for Standard machinery

No.	Parts	Allocation	Manufactured country
1	PLC	Porcheson	China
2	Vane Pump	Albert	USA
3	Directional Valve	Tokimec	Japan
4	Proportional Valve	HNC	Taiwan
5	Electric Motor	Qianlima	China
6	Contactor	LS	Korea
7	Plasticizing Oil Motor	STF	China
8	Air Breaker	LS	Korea
9	Thermal Overload Relay	LS	Korea
10	Limit Switches	Omoron	Japan
11	Liner Position Sensors (Electric Ruler)	Minor	China
12	Lubrication Pump	Chaorun	China

Remark:
1, Machine above HJF650 include proportional back pressure valve.
2, Machine above HJF650 include hydraulic safety device.
3, Machine above HJF780 include automatic door and loading platform.
4, If the machine needs to add the above additional equipment, an extra charge is required.
Main configuration for Servo machinery

No.	Parts	Allocation	Manufactured country
1	PLC	Porcheson	China
2	Directional Valve	Tokimec	Japan
3	Air Breaker	LS	Korea
4	SSR(solid state relay)	Fotek	Taiwan
5	Plasticizing Oil Motor	STF	China
6	Limit Switches	Omoron	Japan
7	Liner Position Sensors (Electric Ruler)	Minor	China
8	Servo Gear Pump	Sumitomo	Japan
9	Servo Driver	Delta	Taiwan
10	Servo Sensor	Ashcroft	German
11	Servo Motor	Albert	USA

SPARE PARTS( FOR FREE)

1. Toolbox: 1SET,	8. Nozzles: 1PCS,
2. Screwdriver: 2PCS,	9. Heating Ring: 2PCS,
3. Vise: 1PCS,	10. Lubrication Oil : 1 Bucket
4. Wrench: 1PCS,	11. Thermocouple: 2PCS
5. Hexagon Wrench: 1SET,	12. Mold clamping with bolts: 8PCS,
6. Limit Switch: 2PCS,	13. Machine shockproof pads: 6PCS,
7. Seal Ring: 2PCS,	14. Power socket for auxiliary machines: 2PCS,

Note: Different machines, the quantity of free accessories is different.

---
