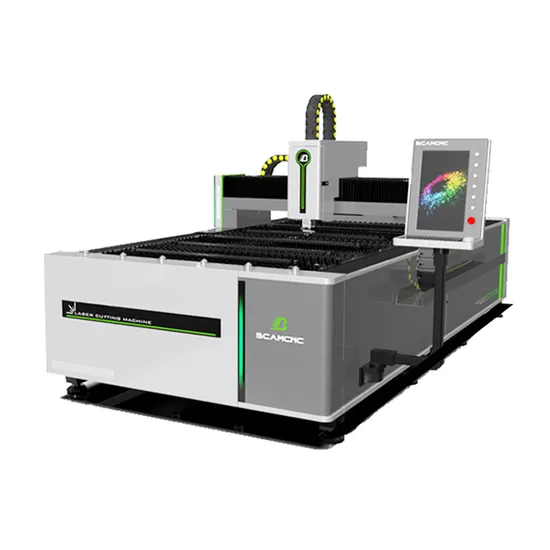

Hot Selling 2000W 3000W 1530 Raycus CNC Metal Stainless Steel Fiber Laser Cutter Cutting Machine

Product Description

Hot Selling 2000W 3000W 1530 Raycus CNC Metal Stainless Steel Fiber Laser Cutter Cutting Machine
Product Description
Product Introduction
1.Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.
2.Adopts imported high precision, high speed, linear guide rail drive, good rigidity and good stability.

3.Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.
4.Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
5. Adopting servo motor and driver, and combind Japan Reducer, which can make sure machine high speed and big power.
Detailed Photos
Product Parameters

Fiber Laser Cutting Machine
Model	BCM3015F
Working area	1500*3000mm
Optional working area	1500*3000mm/2000*3000mm 2000*4000mm/2000*5000mm/2000*6000mm...
Laser source	Raycus 1500w
Optional power	1500w,2000w,3000w,4000w, 6000w(Raycus and IPG)
Max. empty running speed	120m/min
Max. cutting speed	0-30m/min (Depending on the material and thickness)
X, Y, Z Axis Orientation Precision	≤±0.05mm/m
X, Y, Z Axis repeat precision	≤±0.03mm /m
Min. line width	≤0.15mm
Driving way	Imported servo motor
Transmission way	Y-axis import gear rack double driver, X-axis imported ball screw
Cooling system	Water Cooling
Continuous working time	24hours
Power requirements	380V/3 Phases /50Hz or 60Hz
Gross weight	2500kg
Packing size (L*W*H)	4500*2300*1800mm

Application
Application :
Fiber laser cutting machine is widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts,Nameplates, etc, especially professional metal cutting industry materials which require high precision and pursue high efficiency .

Company Profile

Jinan BCAMCNC Machinery Co., Ltd.
Established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.

BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.

"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.

BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD . In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.

By Global High-Tech CNC Equipment Supplier---BCAMCNC
More products

Certifications



After Sales Service
After-sales Service
1. Our engineers could provide 24 online service in English by Whatsapp, Skype, Wechat, Phone, E-mail, etc. All our engineers have rich experience and could speak English, so it's easy for us to communicate with each other.
2. For each customer, we will set up a technical support group through Wechat/Skype/Whatsapp, could provide machine installation, operation guidance, technical support in this group. Any question you can contact us in this group, we will respond quickly.
3.We could provide door-to-door service. Our engineer could support you technology to your country if necessary.
