4lz-3.0z Harvesting Machine, The Expert for Hill and Mountain Areas

US$9,900.00-11,000.00 3 Sets (MOQ)

Basic Info.

Model NO.
4LZ-3.0Z
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Self Propelling
Certification
ISO9001:2008, CE
Color
Red and Yellow
Condition
New
Application Field
Agriculture
Warranty
1 Year
Rush Order
Support
Gross Weight
2450
Net Weight
2410
Period for Delivery
15-60
Transport Package
Package Suitable for Long Distance Transportation
Trademark
K-BOS
Origin
Sichuan, China
HS Code
843351
Production Capacity
3000

Packaging & Delivery

Package Size
430.00cm * 198.00cm * 267.50cm
Package Gross Weight
2410.000kg

Product Description

Product Description

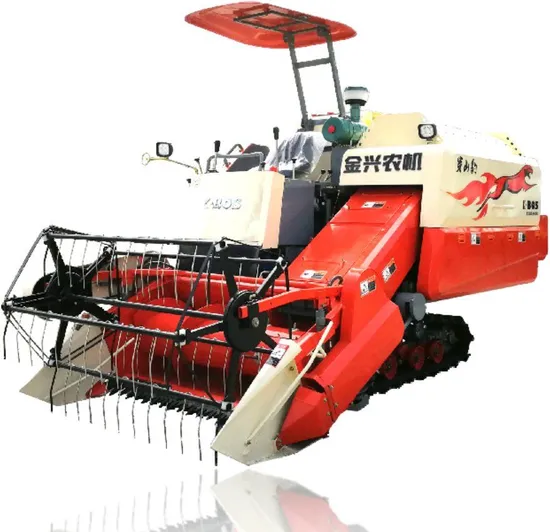

Introducing the 4LZ-3.0Z combine harvester, the ultimate harvesting machine designed for hill areas. With its lightweight and compact structure, this self-propelled crawler harvester is an expert in conquering challenging terrains. It is the ideal choice for harvesting a wide range of crops including canola, corn, soybean, and more.
Equipped with energy-efficient and environmentally friendly features, this harvesting machine ensures low fuel consumption, making it cost-effective and sustainable. Its flexible and convenient operation allows for effortless maneuverability, enhancing productivity during harvesting.
This harvesting machine also offers the option to be equipped with various additional crop harvesting attachments, providing versatility and efficiency in the field.
Choose the 4LZ-3.0Z combine harvester for a reliable and high-performing solution in hill areas. Experience the benefits of its advanced technology, including its lightweight design, energy efficiency, and convenient operation.
FIRST small Longitudinal axial flow combine in China
Specially designed for small field in mountain areas hills and island area
Tight constructure light weight wide rubber track
HIGH-STRENGTH engineering plastic sieve
FIVE-BAR pickup reel
Easy-operation and energy-saving
Multi-functional for corn rape seed soybean etc.
Product Parameters
Specification:
Product Model 4LZ-3.0Z Combine Harvester
Overall Dimension Length×Width×Heights ( mm ): 4300×1980×2675
Weight (kg) 2410
Productivity of Operating Hours(hm²/h): 0.05~0.48
Engine Engine Model 4B2-60U32
Rated Power ( kw/hp ) 44.2KW/60HP,51KW/70HP
Engine Type Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel.
Rated Rotation Speed (r/min) 2400
Traveling System Type of Gearbox: HST X (3F, 3R)
Hydraulic type + HST(3F, 3R)
Rubber Track(mm): 400 x 90 x 46
Gauge 920
Minimum Ground Clearance (mm) 280
Cutting header Height Adjustment Hydaulics.
Cutting Width ( mm ) 1550
Header auger type Telescopic Screw Conveying
Pickup Reel D800mm; Qty 5
Eccentric Tooth(off-centre)
Threshing System Threshing System Spiked Tooth Axial Flow
Threshing Cylinder Quantity 1
Cylinder Diameter×Length ( mm ) φ540 x 1521
Cleaning Mechanism Type Air and Screen Cleaning, Vibrating Sieve adjustable
Grain Storing Automatic Unloading 950L 360° / 90°
Big Grain Tank Capacity 950L with 360° / 90°Unloading Auger
Manual Operation 350L
Small Tank Capacity 400L by Manpower

Our Advantages
We wre open to customize product and soulutions for your local field. Integrated after-sales management system. International mechanism of modern enterprise system. Over 70% sales is oversea market.
