Double Face Paper Machine Corrugated Cardboard Conveyor Belt

Product Description

Product Description
Leizhan's corrugated cardboard conveyor belt is developed for the corrugated cardboard production line and is dedicated to double-sided machines. The four functions of the conveyor belt are smooth cardboard conveying, straight running, evenly distributing the pressure of the pressure system to the hot plate and ensuring the best cardboard dryness.
Conveyor belts are usually subjected to high temperature, high humidity, high friction and pressure from the pressure system during operation. The conveyor belts of Mirrensson are woven from fracture-resistant, high-temperature and abrasion-resistant fibers. The high-quality raw materials give the conveyor belts extremely strong friction and paper-carrying capabilities. This provides a safe and reliable guarantee for the smooth production of your tile line.
Leizhan's corrugated cardboard conveyor belt is widely used and suitable for all known corrugated wire models in the world! Especially in the new high-speed corrugating machine using the most significant results. In addition, the corrugated cardboard conveyor belt of our company is developed for the tile line using pressure roller airbag or pressure plate pressure system. No matter what kind of production requirements you have, Lei Zhan can provide corresponding products according to different application ranges.
Our Advantages
(1) Not sensitive to external interference
(2) High moisture absorption fiber is used to improve the moisture absorption and dehumidification capacity of the conveyor belt
(3) High friction coefficient = strong paper-carrying ability, even and firm adhesion of cardboard
(4) Running straight
(5) Smooth operation-low noise
(6) Suitable for all kinds of tile wires, repairable after damage, less trimming
(7) Ultrahigh speed
(8) Suitable for mixed order production
(9) Reduce scrap rate by 50%
Product Parameters

Description	High speed fast track cotton belt	High speed Moisture Absorption Belt	High speed Silencing Belt	Towing and Palletizing Belt	Honeycomb Cardboard Conveyor Belt
Characteristic	Conform to the production requirements of new corrugated paper production line Ensure high speed Low energy consumption	Suitable for ultra-high speed corrugated cardboard production lines High water absorbability/release property Micro corrugated cardboard production	Suitable for high speed production lines Low noise level,smooth operation Long service life	Smooth conveyance Small turning radius Good wear resistance	Suitable for honeycomb cardboard production lines Small turning radius Long service life
Raw material	100% synthetic fiber	100% synthetic fiber	100% synthetic fiber	100% synthetic fiber	100% synthetic fiber
Thickness	8.5-9mm±0.3mm	9mm±0.3mm	9-10mm±0.3mm	5.5mm±0.2mm	6-8mm±0.2mm
Width	2200mm-3000mm	1600mm-2800mm	1400mm-2600mm	100mm-2500mm	1200mm-2500mm
Temperature Tolerance	160ºC 200ºC 254ºC	160ºC 200ºC 254ºC	160ºC 200ºC 254ºC	160ºC 200ºC 254ºC	160ºC 200ºC 254ºC
Unit weight	7.3±0.3kg/m2	7.2±0.3kg/m2	7.5±0.3kg/m2	4.3±0.2kg/m2	4.5-7.0±0.2kg/m2
Air permeability	2.26m3/m2.min	2.1m3/m2.min	1.95m3/m2.min	1.82m3/m2.min	1.57m3/m2.min
Coefficient of friction	≥0.43μ	≥0.43μ	≥0.42μ	≥0.38μ	≥0.38μ
Minimum turning radius	R70	R70	R70	R20	R20-R50
Speed of conveyor applicable	300m/min	240m/min	200m/min		150m/min
Notes: a) Temperature for long-time operation b) temperature for instantaneous operation c) Melting point

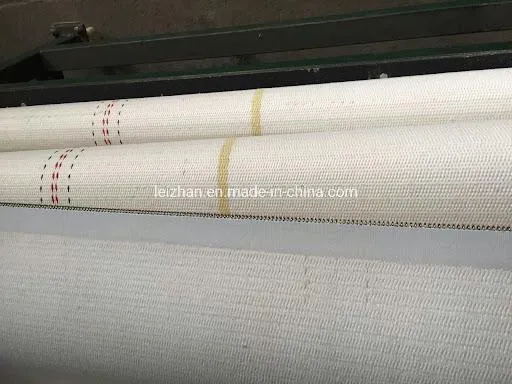

Detailed Photos
Company Profile
We are a China industrial felt and fabric manufacturer located at Jiangsu province,Xuzhou city. We committed to offer best quality products,most favourable price,free consultation and complete solution related to paper-making industry,filter press,transportation and pavement construction industry. For years,we have insisted on taking customer's requirements as our center and having strict quality-control and innovation in the whole process.
We will always be willing to provide customers all over the world with high-quality products and the best service to make them more successful.
We are appreciated for the long-term trust and favor from our customers.Hope we can cooperate sincerely and make progress together with our new and old customer.
In today's globalization, we unite with our customers, develop together, and make customers more successful.

---
