Tck4563 CNC Lathe Machine Horizontal Turning Machining Center

Product Description

Product Description
Products Description:

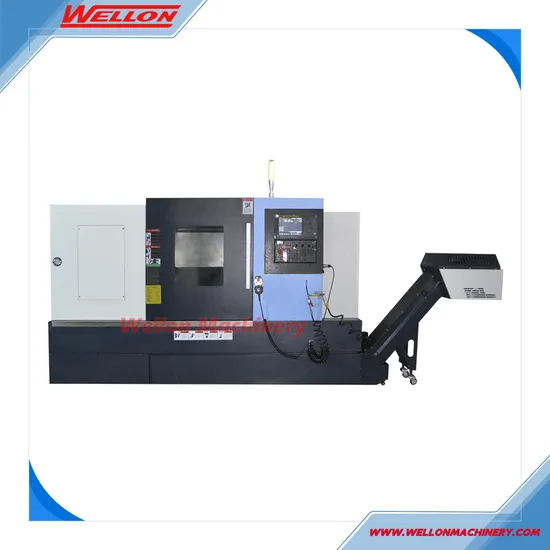

TCK4563 CNC lathe machine horizontal turning machining center
Performence Features:
This series of machine tools uses a 30° inclined overall bed, and the bed material is HT300. Using resin sand art casting, internal
The rib layout is reasonable. The guide rail adopts imported linear roller guide, which has improved feed accuracy, low friction resistance, good rigidity, and
Vibration and deformation resistance is high, allowing users to obtain higher accretion accuracy and faster moving speed, and obtain higher
Production efficiency.
Higher accuracy Taiwan Linear guideways.
High speed spindle unit.
Higher rigidity cast iron.
Integrated automatic lubrication
45 degree One-piece casting slant bed. Product Parameters
Technical parameter:

Specifications	Unit	TCK4563
Max.swing over bed	mm	650
Max. turning diameter	mm	600
Max.swing over cross slide	mm	400
Max. turning length	mm	1000
Spindle nose	A2	A2-8/A2-11
Chuck size	Inch	10"
Spindle motor power	kw	15/18.5
Max.spindle speed	rpm	2600
Spindle bore	mm	87/102
Max.bar dia. through spindle hole	mm	72/91
Bed slant angle	Degree	45°
X/Z axis leadscrew diameter	mm	40/50
X/Z axis linera guideway width	mm	55/55
X axis limit Travel	mm	350
Z axis limit Travel	mm	1120
X/Z axis motor torque	Nm	22/22
X/Z axis motor power	kw	3.0/3.0
Tailstock travel	mm	1250
Tailstock quill travel	mm	120
Tailstock quill diameter	mm	100
Tailstock taper	Morse	MT5
Machine weight	kg	6300

Standard Accessories
Standard accessories

Fanuc 0i TF plus controller

Main motor and servo motor from Fanuc

Linear guideway from Hiwin or PMI

Ball leadscrew from Hiwin or PMI

Hollow hydraulic chuck

Foot switch for chuck clamp and tailstock

Tool measurement probe Renishaw

Hydraulic programmable tailstock

Hydraulic stations

Hydraulic turret 12 tools

6 tool seat (2 external,2 internal,2 boring)

Telescopic covers

Full closed cover

Coolant system

Lubricating system

Work lamp

Tri-color alarm lamp

Safty door

USB interface

Chain type chip conveyor

Air gun + Water gun

Schneider electric components

Live center

Tools and tool box

English Manual

Optional accessories
Optional accessories

Power turret BMT55

Extra Radial live head

Extra Axial live head

C axis Function

Y axis travel ±45mm

Part catcher

Servo type bar feeder
