New Design Tire Pyrolysis Reactor Twin Style Pyrolysis Plant

Product Description

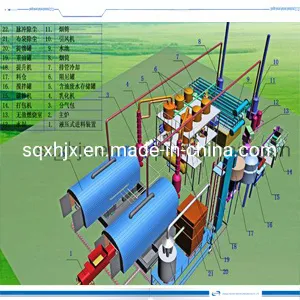

1.Major configuration

	Parts name	specification	qty
1.	Reactor	2800*6000mm	2
2.	Oil separator	1000*1500mm	2
3.	Heavy oil tank	900*1500mm	2
4.	Cooling tank	4000*6000*15000mm	1
5.	Light oil tank	1500*3000mm	2
6.	Water sealing tank	900*1500mm	2
7.	Dedust system	12000*3000mm	2
8.	Waste gas recycling device		2
10,	Electric control board	Big size	1
11.	Other parts

2.Plant features
1. Two reactor work together , sharing cooling system
Saving working area and saving machine cost, two sets plant use one cooling system
This reactor heating pyrolysis another reactor cooling and slag out
Saving labours
2.This machine produces waste gas can be used for another reactor,saving fuel energy
3.Reasonable design , high safety performance and easy to operate
3. Pyrolysis principle
Put waste waste tyre/rubberf/plastic into reactor , after heating solid tyre/ruuber/plastic convert to oil gas, and oil gas come out of reactor ,when oil gas pas by oil-gas separator ,heavy oil having more dedust will deposit and go to heavy oil tank. Light oil gas will go to cooling system
,by cooling oil gas will come to liquid oil and go to light oil tank.
The non-liquid gas will go to water sealing, after water sealing waste gas will go to burning room ,burned to heating reactor for next pyroly
4.Other choices:

Type	24hour capacity
Batch type pyrolysis plant	5ton,8ton,10ton 12ton,15ton
Semi-continuous pyrolysis plant	10ton,15ton,20ton
Fully continous plant	20ton ,30ton,40-60ton
Tunnel reactor pyrolsyis plant	15Ton 20Ton
Lengthen Reacor pyrolysis plant	15Ton ,20ton
Other special customerized plant	As customer requirement

5.why chose us?
1.Safety.
A. our machine with full safety device such as safety valves, temperature meter pressure meter.
B. Auto alarming
C. Reactor take safety design.
2.High oil rate. Two style cooling system. Water pool and condenser cooling.
3. All material are national standard, quality is guaranteed.
4.Carbon discharge fast.We use now technology to discharge carbon black.
5.Avoid complicated design ,reasonable and easy design , more easy and efficiency
6.Short delivery time.
7. After-sale service guaranteed.
For all customer we service in 24 hours.
8.Waste gas store technology, saving fuel energy
9.New technology, making reactor cool fast, shorten 3 hours.
10.New technology ,taking natural gas as fuel, more efficiency
11. 9 years rich experiences for manufacturing and using this technology and research in this waste recycling area.

---
