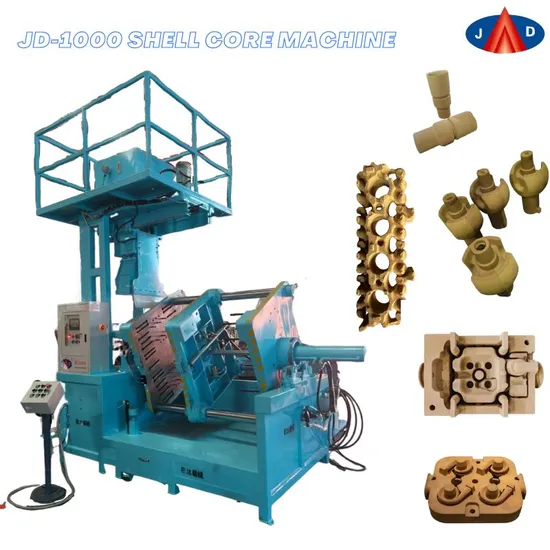

Jd-1000 Automatic Core Shooting Machine Sand Core Sand Molding Machine Core Shooting Machine

Product Description

Product Description
JD-1000 Shell core machine Main Specification and Technology Parameter

No	Name	parameter			Note
1	The maximum size mold frame	(1030*850*1350)mm
2	Diameter / Stroke of main cylinder:	Φ110/Φ50-1000
3	The Maximum Opening/ Clamping Force:	75KN/90KN
4	Diameter / Stroke of Ejection Cylinder:	Φ70/Φ35-100
6	Max Ejection force:	40KN
7	Diameter / Stroke of title cylinder:	Φ63/Φ30
8	Maximum / Minimum Distance Between the two platen:	350-1350
	Volume of shooting sand hopper:	60KGS
10	Sand hopper move air cylinder :	SC50
11	Control:	Manual and Automatic
12	Machine size(L*W*H) :	(3900*2000*3100)mm
13	Hydraulic station size(L*W*H) :	(800*800*1000)mm
14	Machine weight :	5200kgs
15	Hydraulic system working pressure :	0~10MPa

Products detail
About us: Quanzhou Jingda Machinery Co.,Ltd., the brand "Jingda Machinery", is located in the High end Equipment Intelligent Manufacturing Park, Plant 1,Unit 4, No. 99, Pulang Village, Xiamei Town, Nanan City, Quanzhou City, Fujian Province, China. It is a company engaged in technical process guidance, mold design field staff training and manufacturing water heating and sanitary ware complete sets of equipment products. The main products : brass gravity casting machine, double-head automatic core-shooting machine, vertical core-shooting machine ,sand mixer, Aluminum alloy gravity casting machine,Robot,die casting machine ,low pressure casting machine,shot blasting machine,dring and tapping machine ,furnace ,cutting machine,polishing machine,CNC,mould,casting parts and so on. In order to purchase equipment manufacturers, the company can train technicians free of charge, making it faster and more skillful to achieve the desired purpose.
We always adhere to the quality of survival, science and technology for development purposes, and constantly open up, efforts, innovation, to shape a good product, improve the strength of the image, perfect market system, dedicated to provide users with perfect after-sales service, sincerely hope to work with the vast number of users at home and abroad to create brilliant.
Business philosophy: We have been actively advocating the "enterprising, excellence; keep promise, explore the new" spirit of enterprise, market-oriented, science and technology as the leader, the establishment of a more comprehensive quality assurance system, the company has a wealth of design, manufacturing and sales experience, after years of unremitting efforts We always take product quality as the life of the enterprise, and can adapt to the needs of different customers, in different production conditions and capabilities.↳
Technically, we are constantly innovating, striving for high technology and high quality.
In technology, we strive for excellence and strive for good quality.
In management, we emphasize science and unremittingly pursue the concept of international management.
The purpose of the company is "meticulous manufacture, meticulous design and sincere service".
FAQ Q1. Where is your factory located ? How can I visit it ? A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up. Q2. Are you produce machine's specific parameters according to the samples? A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine. Q3. What is your sample service? A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost. Q4. What is your MOQ of your machine? A: Normally our MOQ is 1 set. Q5. Do you test all your machine before delivery? A: Yes, we have 100% test before delivery. Q6: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Q7:Are you manufacturer or trade company? A:We are manufacturer Q8:What is your delivery time? A:Commonly,we deliver within 35 days. Q9:Can i visit your factory? A:Sure,welcome you. Our address:High end Equipment Intelligent Manufacturing Park, Plant 1,Unit 4, No. 99, Pulang Village, Xiamei Town, Nanan City, Quanzhou City, Fujian Province, China. Nearest airport:Quanzhou jinjiang Airport

---
