| Item | CAM 800 |
| Interface | 4*10/100/1000 Base-T Ethernet LAN port 1*console, serial port, RJ45； 1*Reset port |
| Max management AP count | 64 |
| Max concurrent user count | 2000 |
| Operating Temperature | 0～40℃ |
| Storage Temperature | -20～80℃ |
| Operating Humidity | 10～95％(non condensation) |
| Power | 12V DC |
| Consumption | 36W |
| Dimension | 1U（Desktop） |
| Function | Description |
| Support network protocol | 802.11a/b/g/n/ac 、802.1P 、802.11e、802.11k、 802.11 ARP、DHCP、TFTP、RIP、OSPF、STP |
| WLAN network structure | AC discovery · Support Broadcast discovery CAM · · Support DHCP option 43 discovery CAM · · Support manual designation CAM · · Support DNS discovery · Deployment structure · Support AP/AC layer2 or layer3 network structure · · Support Cloud AC network structure · Backup Mode · Support 1+1 hot standby mode · · Support +1 standby mode · |
| Wireless RF management | Channel and power configuration · Support automatic or manual power adjustment · · Support automatic or manual channel adjustment · · Support automatic or manual rate adjustment · Load balancing · Support for traffic-based load balancing · · Support user-based load balancing · · Support for RF-based load balancing · |
| Data forwarding and certification | Support local forwarding mode; Support centralized forwarding mode; Support local NET forwarding mode (user obtains address from AP); Support CAPWAP tunnel and DTLS encryption between AP and AC; Support centralized encryption, local forwarding mode |
| User management | Support for user black and white list; Support for the number of user access restrictions; Support for forced users to go offline; Support isolation based on user; Support user group access isolation (VPN isolation). |
| Certification and encryption | Encryption type · Support OPEN/WPA-PSK/WPA2-PSK hybrid encryption · · Support WEP/TKIP/AES encryption · User certification · Support MAC/portal/802.1X certification · · Support Mac/portal hybrid certification · · Support WeChat authentication · · Support SMS authentication · |
| Multi-dimensional user access and role assignment | Supports access and role assignment based on terminal MAC address; Support user-based permission allocation, and set different access rights for each specific user; Support time-based rights allocation, different access rights in different time periods, flexible control of employees' access rights during commuting; support for setting different access rights based on user groups and temporary visitor groups; Different network permissions can be set for the user-free authentication, SMS visitor, QR code visitor, temporary visitor, WeChat visitor, WeChat + SMS authentication visitor based on the visitor type. |
| QOS function | Support to guarantee or limit traffic on different lines according to different applications, users, and user groups; Based on single-user uplink and downlink traffic control, the flow control granularity is 1 Kbps; Support time-based traffic control, allocate different traffic policies in different time periods, and flexibly allocate bandwidth resources; Support traffic control based on terminal access location, and assign different traffic policies to different access locations; WMM、802.1p; Support priority scheduling based on business application type (voice, video, data); |
| Device maintenance | Support AC firmware remote automatic or manual upgrade; Support batch upgrade based on AP hardware type/firmware version/ location; Support upgrade based on AP specific time; |
| Log | Supportviewandexportdevicelog, operation log, user log, probe log, alarm log classification; Supportexternallogserverfordataexport; |
| Network management function | Support standard and open management information database, example for MIB II, 802.11 MIB Support local network management in serial port mode Support ssh and telnet management Support https management |

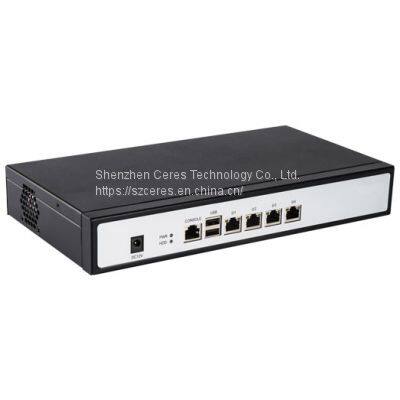

| Product Name | Wireless controller AC |
| Product Model | CAM800 |
| Description | 1 console port, 2 USB ports, 4 10/100/1000 Base-T Ethernet ports,max management AP count: 64, power: 12V DC. |
