Automatic BOPP PE PP Plastic Irregular V Type Umbrella Cake Cream Piping Flower Sleeve Bag Making Machine

US$10,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
600-1200
Voltage
380V
Seals Mode
Lateral Sealing
Speed
High
Continuous-Rolled
No
Sealing & Cutting
Heat-Sealing Heat-Cutting
Layer
Single
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Side Sealing Bag Making Machine
Material
BOPP, PP, CPP, OPP, PE, etc
Hole Puncher
6mm or 8mm
Cutting Speed
40-100PCS/Min
Photocell
Sick, Germany
Inverter
Delta, Taiwan
Servo Motor
Yaskawa, Japan
SSR
Fotex, Taiwan
Silica Gel Plate
3000X630mm
Weight
2000kgs
Dimension
8000*1300*1500
Transport Package
Wooden Box Packing
Specification
600-1200
Trademark
YONGCHANG
Origin
Ruian, Zhejiang
HS Code
8477800000
Production Capacity
1000 PCS/Year

Product Description

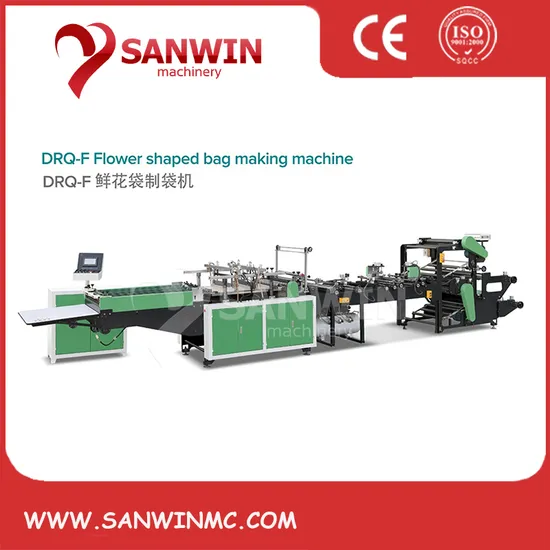

High Speed Flower Shaped Bag Making Machine
Procedure:Edge Position Control (EPC system )-----Spot Line Cutting Device-----Bottom Sealing Device------Punching----Cutting
Application:
This machine our company new machine at 2013 year .is suitable for various kind of material such as BOPP,CPP,LDPE,HDPE,etc.It is the Professional equipment which is used for making such triangle bags,Trapezoidal bags,Special shaped bags like flower bags,tower shaped bags,umbrella bags ,necktie bags,sandwich bags,etc.
Main Features : 1.Human interface,Touch Screen ,Motion control,easy to operate 2.Photocell tracking ,Automatic stop when sealing cutting in the highest position
3.Adopt Japan Brand YASKAWA Double Servo motors Driving,5 sets Taiwan Brand DELTA Frequency Inverter and TAIWAN Brand three-phase Motor ,Feeding accurately and stably
4.Tanwan Photocell tracks the colored bag ,controling the bag size accurately
5.Unwind material holder by Air shaft ,Magnetic powder control , Edge Position Control (EPC system )
6.Double Pneumatic Punching device,Bottom sealing device,water cooling device,spot line cutting device
7.Transmite by 3 meters imported silicon plate,good quality and last long time
8.Heating knife use special steel knife inside heating
9.Use for Bopp,Cpp,Ldpe,Hdpe film ,etc. Main Technical Parameters:
Model DRQ-F 600 Speed 30-100 PCS/MIN
Max Unwiding diameter 500mm Total power 6kw
Max Film Width 600mm Supply Voltage Three phase,380V 50HZ
Bag width: 70-500mm Size(LXWXH) 8000X1300X1500mm
Bag length: ≤550mm Weight 1200kgs

Sample:
Machine Details:
1.Two film Feeding Material with EPC with air shaft
2.2 PCS Spot Line Cutting Device
3.2 PCS Bottom Sealing Device
4.12 PCS Adjusting Pneumatic Hole Puncher Device
5.4 meters Imported Driving belt
6.Touch Screen +PLC
7.5PCS Inverter and 2PCS Servo Motor
FAQ: 1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 25 years
and focus on bag making machine,printing machine,film blowing machine,etc.
and we also have one trading company
2.Q:Where is your factory Located? How can we visit it? A:Our factory is located in Ruian City,Zhejiang Province,China From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours. 3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 30-40 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
Our Service : 1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
