| US$2,950.00 | 1 Piece (MOQ) |

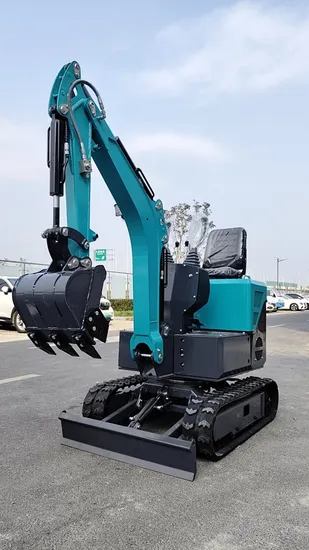

| TC10B | |||
| Specifications | Rubber track | ||
| Net weight | kg | 775 | |
| engine | type | Air cooling | |
| Model | KOOP 192FA | ||
| Rated output power/speed | kW(HP)/rpm | 7.6(10)3000 | |
| track | Track Model | 180*72*37 | |
| Track width | mm | 180 | |
| bucket | Standard bucket capacity | m3 | 0.025 |
| Standard bucket width | mm | 400 | |
working performance | Maximum digging force (bucket) | Kn(kgf) | 7.2(735) |
| Maximum digging depth | mm | 1735 | |
| Maximum vertical digging depth | mm | 1580 | |
| Maximum digging height | mm | 2700 | |
| Maximum unloading height | mm | 1845 | |
| Maximum horizontal digging radius | mm | 3060 | |
| Minimum rotation radius at the front end | mm | 1295 | |
| speed | Walking speed | Km/h | 1.8 |
| Rotation speed | rpm | 9.5 | |
