US$17,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Max. Power Consumption
2.0kw
Max. Working Speed
25000mm/Min
Drive Motors
Yaskawa Servo Motor
Control System
Syntec 6MB
Transport Package
Wooden Package
Specification
13 cubic meter package
Production Capacity
1000set/Year
Product Description

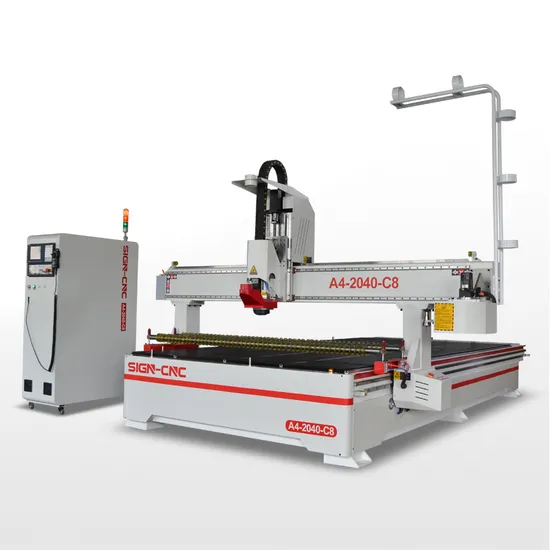

heavy duty 1530 carousel 3d wood cutting cnc machine 1325 cnc router woodworking equipment cnc drilling machine
Specification
Model
| SIGN-2040
|
X, Y Working size
| 2000*4000mm
|
Z feed Height
| 300mm
|
Table Surface
| Vacuum table
|
X, Y Structure
| Rack and Pinion Drive, TBI Linear Square Guide Rail
|
Z Structure
| TBI Linear Square Guide Rail and Ball Screw
|
Max. Power Consumption
| (Without spindle) 2.0Kw
|
Max. Rapid Travel Rate
| 33000mm/min
|
Max. Working Speed
| 25000mm/min
|
Spindle Power
| 9.0KW HQD ATC spindle
|
Spindle Speed
| 0-24000RPM
|
Drive Motors
| Yaskawa servo motor and driver
|
Working Voltage:
| AC220V/50/60Hz
|
Command Language
| G code
|
Control System
| SYNTEC 6MB
|
X,Y,Z repositioning Accuracy
| ±0.01mm
|
X,Y Resolution
| <0.01mm
|
Software
| Artcam
|
Running Temperature
| 0 degree - 45 degree
|
Relative Humidity
| 30% - 75%
|
Optional Parts
| Rotary system,
Panasonic Servo motors
|
Jinan Sign CNC Equipment Co., Ltd.
FAQ
1. How can I run it ?Send you the operation video and English instruction for use.We provide free technical support 2. What else I need except the machine?computer for design drawing ,ATC machine use air compressor3.What is the warranty?2 years.4. What is your payment?T/T 30% deposit ,70% before shipping.
>>
