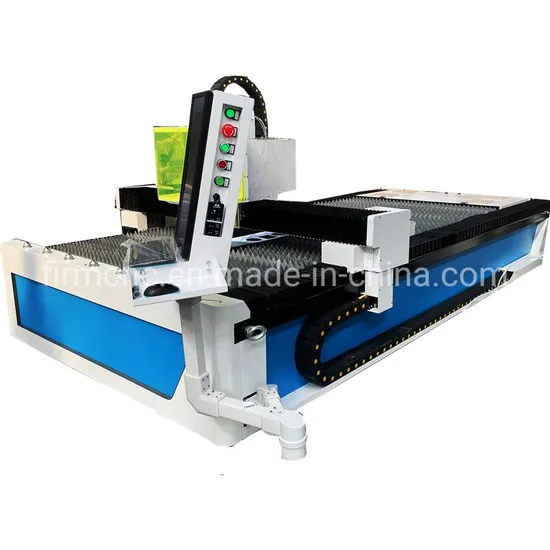

Metal Carbon Stainless Steel Aluminium Sheet Plate CNC Pipe Fiber Laser Cutting Machine

Product Description

Metal Carbon Stainless Steel Aluminium Sheet Plate CNC Pipe Fiber Laser Cutting Machine Product Description
Cnc Fiber Laser Cutting Machine (Optional)
1. Fiber laser cutter power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China Top fiber laser machine cutting manufactuers, best price and high quality, with CE etc certificates.
Techncial specification:

Fiber Laser Cutting Machine Technical Parameters
Laser Type	Fiber laser
Laser Brand	IPG / Raycus / MAX / RECI
Laser Power	1000W / 2000W / 3000W
Working area	1300mmX900mm / 1300mmX2500mm 1500mmX3000mm / 2000mmX4000mm /
	2000mmmX6000mm
Working Table	Fixed Working Table / Pallet Changer
Control System	PMAC full-closed loop servo control
Driving Mode	Double ball screw driving / Double gear rack driving
Idle/Processing Speed	120m/min / 60m/min
Positioning Accuracy	0.05mm
Protection System	Enclosure protection
Laser Head	Precitec / Raytools
Power Supply	AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power	6KW~20KW
Floor Space	5.6mX3.2m (fixed table) / 6mX4.6m (shuttle working table)
	/ 8.5mX4.2m (pallet changer)
Standard Collocation	Metal nesting software, dual-pressure gas route of 3 kind gas sources,
	dynamic focus, remote controller, etc.
Auxiliary System
Cooling System	Dual temperature dual control water chiller
	with purification system
Lubrication System	Automatic lubrication
Laser cooling system	Horizontal air conditioning
Auxiliary gas system	dual-pressure gas route of 3 kind gas sources
Laser cutting head	Dynamic focus
Circuit and protection system	Independent work station
Software System
Software	Shanghai Cypcut
Supported Format	PLT, DXF, BMP, AI, DST, DWG, etc.

Main parts and samples
Advantages of our fiber laser cutting machine:
1 Fast speed:
80m/min, two driver, synchronous high speed move;
2 Leapfrog cutting:
Improve the cutting speed, processing efficiency and accuracy;
3 Scan cutting :
Short distance cutting without head lifting,
4 Cutting and marking functions:
Power can be controlled set with two layers, one cut and another mark, you can cut and mark together on one metal part;
5 Automatic search edge function:
If metal sheet put slanting , machine can auto detect, and auto adjust cutting, less waste and no need to replace material;
6 Power off cutting memory:
When suddenly power off, software has memory of cut stop point, after power on, you can start cutting from the break point;
7 Install Proportional Valve:
Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;
8 Stable working table:
Use 16mm thick steel side board, around 5 tons in weight;
Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;
9 Air condition for control cabinet
cooling for Electronic parts and Laser Power Supply, make sure control cabinet temperature at 26ºC,extend the life of electronic devices and save the power for the factory.
10 High electrical-optical conversion efficiency
Fiber laser can convert up to 30 % electrical energy into laser energy. High energy conversion makes fiber laser more energy efficient.
Control System
*Brand: CYPCUT(Top one in China)
*Details: Auto edge seeking function and flying cutting function, Intelligent typesetting etc.
Supported Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...
Fiber Laser Source
--Brand: Raycus (optional RECI / MAX / IPG)
--100,000 hours life time, more stable, cost-efficient, Free maintenance.
--The best brand in the world, quality and timely service have assurance.
--The Gold partner with IPG laser source company
Laser Head:
*Brand: Raytools laser head
*Advantages:
--High Precision: without manual, zero fault.
--High Effectiveness: Without manual,Save time
--High Safety: Anti-collision design, height adjustment high sensitivity
Servo Motor
*Brand: Japan YASKAWA & PANASONIC
*Details:
--X axis: one set Japanese YASKAWA servo motor and driver.
--Y axis: one set Japanese YASKAWA servo motor and driver.
--Z axis: one set Japan PANASONIC servo motor and driver.
Higher power of motor and drive makes higher moving speed for laser head.
Machine Bed
*Type: The Segmented Rectangular Tube Welded Bed
*Structure advantage:
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
*For material :
Through 600ºC heat treatment to keep stronger and more solid.
*Feature:
High strength, stability, tensile strength, ensuring 20 years of use without distortion.
Applicable materials for fiber laser cutting machine
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular
among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Other different kinds of fiber laser cutting machines
FAQ
Q1.Can you recommend a fiber laser cutting machine to me ?Yes, In order to give you a suitable fiber laser cutting machine,pls tell me your working area ? processing materials ? Then perfect suitable machine will be recommend.
Q2.Do you have operation manual and working video? Yes,we will send it together with machine.
Q3.Does your company can processing my samples? Yes, we can.
Q4.If I bought machine, but don't know how to operation, what I can do?Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
Q5.How am I going to work on service parts on the machine? Example what if parts need to be replaced? During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.usually for all parts can perfect working one year without any broken .
Q6.Does your engineer do aftersale service at abroad? how much cost?Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.

---
