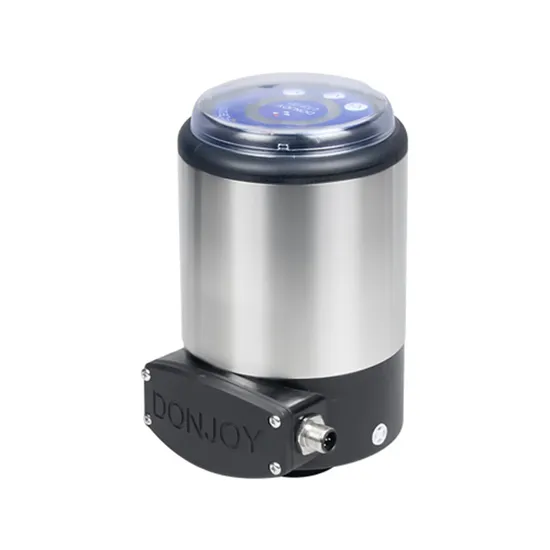

Atex Certified Shutoff Valve Pneumatic Positioner

Product Description

ATEX Certified Shutoff Valve Pneumatic Intelligent Control Positioner
Specification:

Max operating temperature	70degree c
Medium	lubricated compressed air. inert gased
Air connection	G1/8''
Working pressure	1.5bar-7bar(22PSI-102PSI)
Air flux	200NL
Protection class	IP67
Journey	Min3mm. Max 70mm
Max C-TOP units	31
Cable length	2m
Max.Length of AS-I BUS	1M
Packaging details	standard exporting package
Delivery details	Usually within 20 days after receiving T/T down payment

AS-I BUS:two cables are used for digital and 30V DC voltage
AS-I card size:2.1
AS-I card capacity:four input and four output(4 soleboid valves and four sensors)
Operating Principles:
C-TOP is a head incorporates signal sending and command devices to monitor all the process valves.such part has the following features:
Controlled by pneumatic or electrical actuactors
Position indicator with signal feedback
The control head can be fixed with pneumatic valves, It picks signal from control board or PLC so as to operate and send signal to the valves.
In addition, there are three LED signal indicator in the C-TOP box which indicates the status of the valves:
Green:open
Red:clise
Yellow:valve is operating in the third position
Valve Position mechanical adjusted:
open or close- one sensor
Open and close--two sensors
Valve position:open, close. clean the lower seat
Seat lift(mix-proof valve)---three sensors
Valve Position self-adjusting:
1pc sensor with multi position feedback
Valve position self-adjusting function
Analog signal(4-20mA)output
Electrical signal (DC24v)output
Multiple pinhole plug
Applications:
C-TOP is a pneumatic control head which is designed to ensure optimum control valve.
It is compatible with most PLC with figure and(AS-I bus) communications.
In food, beverage, pharmacy industries, it can be configured to all kinds of pneumatic valves such as mixing valve, butterfly valve, ball valve, diaphragm valve, reversing valve, cut-off valve, etc.
Options:
This controller has two versions:Displacement regulating version and Mechanic adjustment version
Single act---one solenoid valve
Double act-two solenoid valves
Mix-proof double seat valve---three solenoid valves
Sensor:one/two/three
Connection function:Cable connection or AS-I bus
Single acting, souble acting, three effects( mixproof valve)
If you have any inquiry, please leave message below and "Click Send "

---
