Growatt Inverter on Grid Mod 10000tl3-X with There Phase

Product Description

Product Description

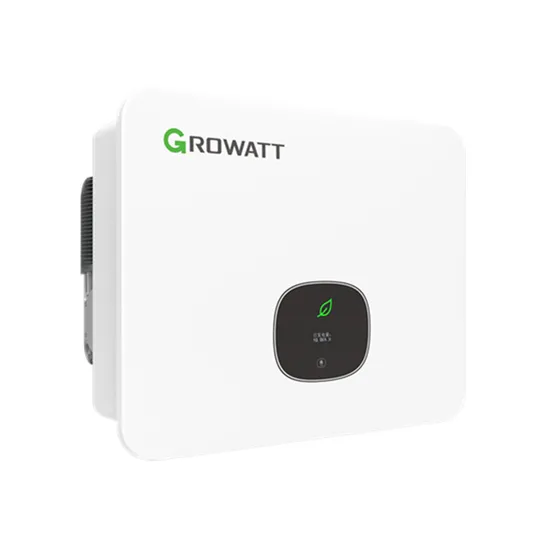

Growatt MOD 10kW TL3-X 3 ph inverter, 2 MPPT with DC
The Growatt MOD generation of photovoltaic inverters is ideal for small installations as it is compact and easy to install, for indoor applications.
The inverters have a natural cooling system thus making them extremely silent compared to other inverters. There are further fewer moving parts lowering the chance of malfunction and decreasing overall maintenance.
KEY FEATURES:
Maximum efficiency of 98.6%Compact designTouch key& OLED displayFlexible monitoring optionsAFCI (optional)WIFI (optional)With DC Safety UnitType II SPD on DC and AC sideProtection degree: IP6610-year warranty
Product Parameters

Datasheet	MOD 10KTL3-X	MOD 11KTL3-X	MOD 12KTL3-X	MOD 13KTL3-X	MOD 15KTL3-X
Input data (DC)
Max PV power (for module STC)	15000W	16500W	18000W	19500W	22500W
Max. DC voltage	1100V
Start voltage	160V
Nominal voltage	580V
MPPT voltage range	140V-1000V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1	1	1/2	1/2	1/2
Max. input current per MPP tracker	13A	13A	13/26A	13/26A	13/26A
Max. short-circuit current per MPP tracker	16A	16A	16/32A	16/32A	16/32A
Output data (AC)
AC nominal power	10000W	11000W	12000W	13000W	15000W
Nominal AC voltage	220V/380V, 230V/400V (340-440V)
AC grid frequency	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	16.7A	18.3A	20A	21.7A	25A
AC grid connection type	3W+N+PE
Efficiency
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	Yes
AC/DC surge protection	Type II / Type II
Grid monitoring	Yes
General data
Protection degree	IP66
Warranty	5 Years Warranty/ 10 Years Optional

Company Profile
Anhui Wingo Technology Co., Ltd. has set up two sole-funded companies in Heifei one Jointed Venture in Anhui province successively since 2020.Wingo is able to provide customers with annual capacity of 300MW solar cells,400MW solar cells modules and 60,000 sets of solar power systems.
FACTORY DIRECT SOLAR INVERTER WITH TIER 1 BRAND!
FACTORY DIRECT SOLAR PANEL WITH TIER 1 BRAND!
FAQ
Are you a factory or a trading company?
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.

---
